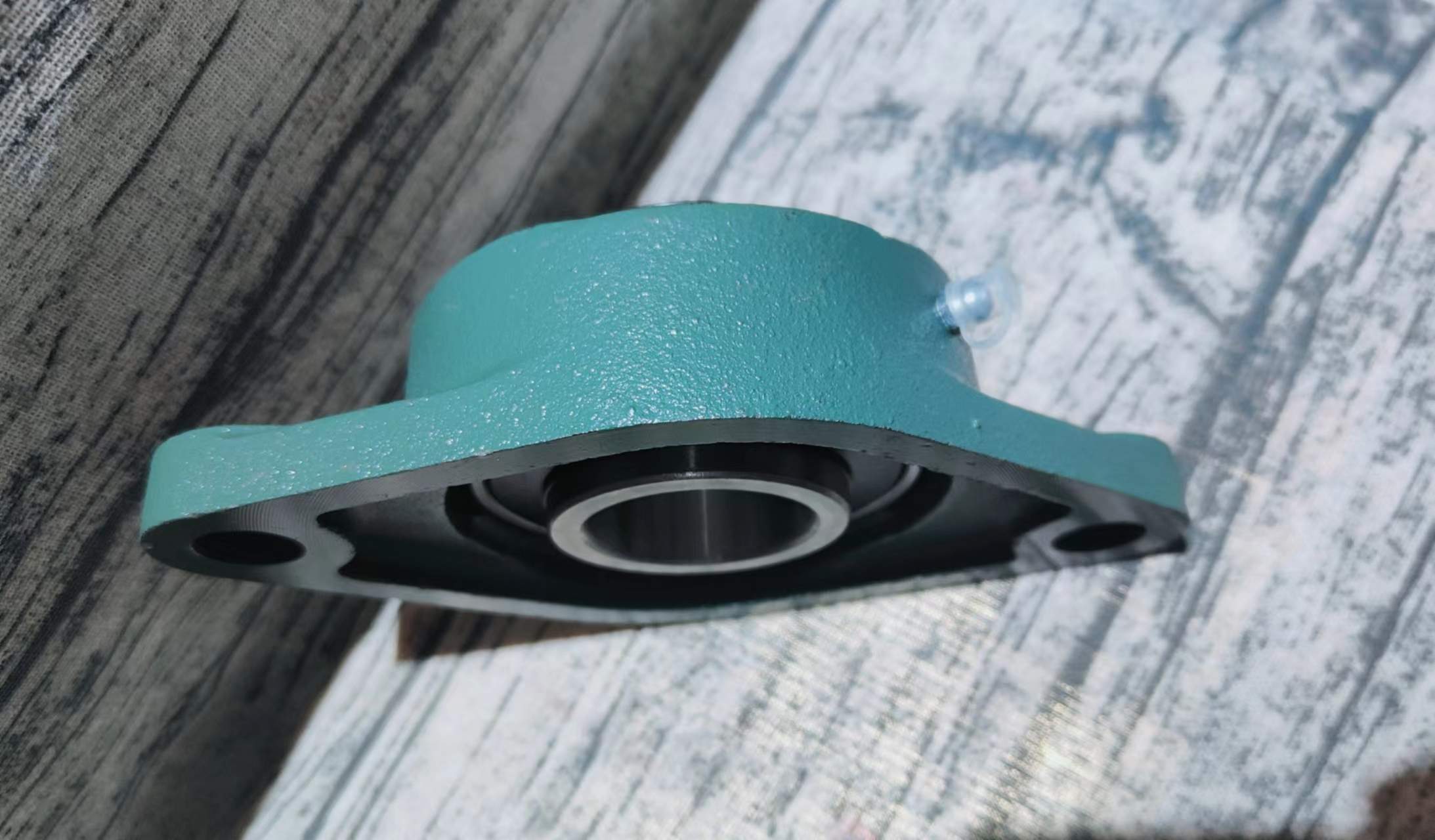

UCFL208-25 2 bolt Flanged housing unit

Our company produces UCFL208-25 bearings. Compared with SKF and other brands, our company’s own brand has a price advantage and can be completely replaced. It is commonly used in conveyor systems, agricultural equipment and industrial machinery.

Category 2 Bolt Flange Bearing Tags 2 bolt Flanged housing unit, Flanged housing unit, UCFL208-25

Product Details

UCFL208-25 Specifications:

Model: UCFL208-25
Application: mechanical equipment, industrial field
Country of Origin: China
Brand: GJP
Inner diameter: 1 inch (25.4mm)
Applicable shaft diameter: 25mm
Bearing material: cast iron
Locking method: double lock nut
Sealing method: rubber sealing ring
Maximum speed: 4000 rpm

UCFL208-25 Dimensions:

Bearing bore diameter: 25mm
Bearing outer diameter: 175 mm
Width: 54mm
Screw hole spacing: 143mm
Base width: 60mm
Base length: 175mm
Lock nut size: M14
Outer diameter of sealing ring: 80 mm
Inner diameter of sealing ring: 40 mm
Width of sealing ring: 22mm

GJP focuses on the production and manufacture of mounted bearings, and has its own processing and production. We currently have a large number of UCPL series in stock, and welcome your consultation.
