13/16” Pillow Block Ball Bearing UCP205-13

13/16'' Pillow Block Ball Bearing UCP205-13

GJP 13/16″ Inch Pillow Block Bearing UCP205-13 with solid base housing and radial insert ball bearing with grub set screw to lock to the shaft. Which is smaller size and has grease zerk on 45 degree angle, and the insert bearing has a wide inner ring with spherical outer diameter, and there are four star seal and with ball point set screw, bearing insert and housing are normally assemblied with J7 tight fitting.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-13/16” Inch Bore UCP205-13 Pillow Block Bearing

GJP Bar Code Number: 6935329802056

GJP 13/16″ Inch Pillow Block Bearing UCP205-13 with solid base housing and radial insert ball bearing with grub set screw to lock to the shaft. Which is smaller size and has grease zerk on 45 degree angle, and the insert bearing has a wide inner ring with spherical outer diameter, and there are four star seal and with ball point set screw, bearing insert and housing are normally assemblied with J7 tight fitting.



Features of stainless steel pillow block bearings

  1. During the working process, stainless steel pillow block bearings work stably, with low noise, corrosion resistance, and are widely used.
  2. Stainless steel pillow block bearings can be used in various products that are easy to rust and strong corrosion, and are widely used.
  3. Compared with ordinary bearing steel, stainless steel pillow block bearings have stronger anti-rust and anti-corrosion properties. Choose appropriate lubricants, dust caps, etc., and can be used in the environment of -60℃~+300℃.
  4. Stainless steel pillow block bearings are widely used in food processing, equipment and pharmaceutical machinery due to their high mechanical strength and large load capacity.

304stainless steel pillow block bearings are a kind of stainless steel bearings, which are very common and widely used. Compared with ordinary stainless steel bearings, 304stainless steel pillow block bearings are non-magnetic, and have good rust and corrosion resistance. The specific characteristics are as follows:

  1. Good corrosion resistance. Ordinary stainless steel is not resistant to corrosion and will be corroded in an acid-base environment. Stainless steel pillow block bearings can operate freely in an acid-base environment.
  2. The anti-rust 304 stainless steel bearing can be used in direct contact with liquid, and it will not rust even if it is placed in water.
  3. Non-magnetic ordinary stainless steel bearings are magnetic and can be picked up by magnets directly, while 304 stainless steel bearings are non-magnetic and suitable for use in special environments.

Interchange

GJP: UCP205-13

AMI: UCP205-13

IPTCI: UCP205-13

NSK: UCP205-13

Peer: FHSP205-13G

Fafnir: RASC-13/16″

Fafnir: YAS-13/16″

RHP: NP-13/16″

SKF: SY 13/16″ TF

Sealmaster: NP-13



13/16” Pillow Block Ball Bearing UCP205-13

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

13/16″

36.5MM

140MM

105MM

38MM

19MM

13MM

71MM

3/8″



Technical Data for GJP UCP205-13

Housing No.: P205

Bearing Insert No.: UC205-13

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 0.6KGS

Quality Control: Under ISO: 9001: 2008 Certificate

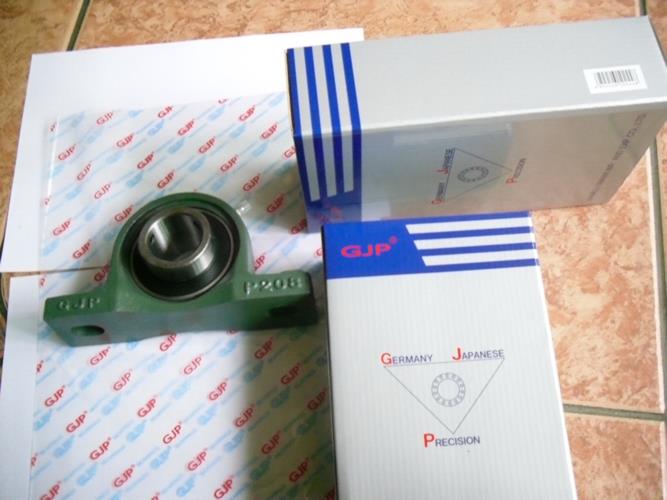

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

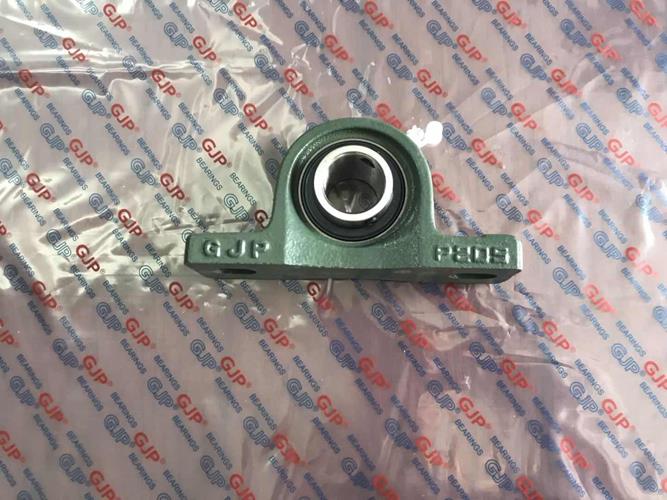

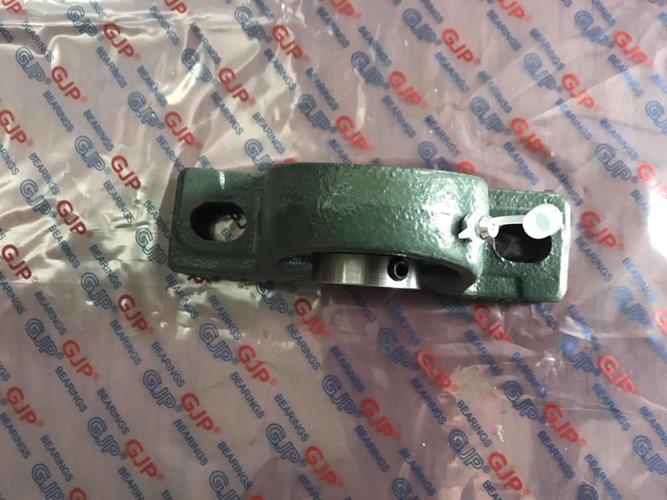

13/16” Pillow Block Ball Bearing UCP205-13

13/16” Pillow Block Ball Bearing UCP205-13

13/16” Pillow Block Ball Bearing UCP205-13

13/16” Pillow Block Ball Bearing UCP205-13



GJP Advantage:

GJP has high quality control on raw material choice, we mainly choose raw material from big steel factory, such as TPCO, BAO STEEL, SHA STEEL, which are best and largest raw material manufacturer in China, which GJP also analyse the material when we receive the raw material and normally GJP request the material suppliers to provide the according material testing report for every different lots.



FAQ

Your factory is producing the pillow block housing only? I mean the housing, or could you produce insert ball bearing also?

Wow! It’s a very professional question, for your information, our factory could produce both the outer housing, but also the inner ball bearing insert, we have two factories, which locates by each other, which could make sure our company control from the beginning to the end, but for the bearing insert, we mainly produce UC series, HC Series, SA Series, SB Series, UK series (from size 201 to 218), for UCX Series, if our customers need, they could send us the bearing insert by themselves or we could help them purchase from other of our partners, of course, for the Eccentric Locking Collars, Adapater and Sleeves, set Screw,we need to buy from outside of our factory.
