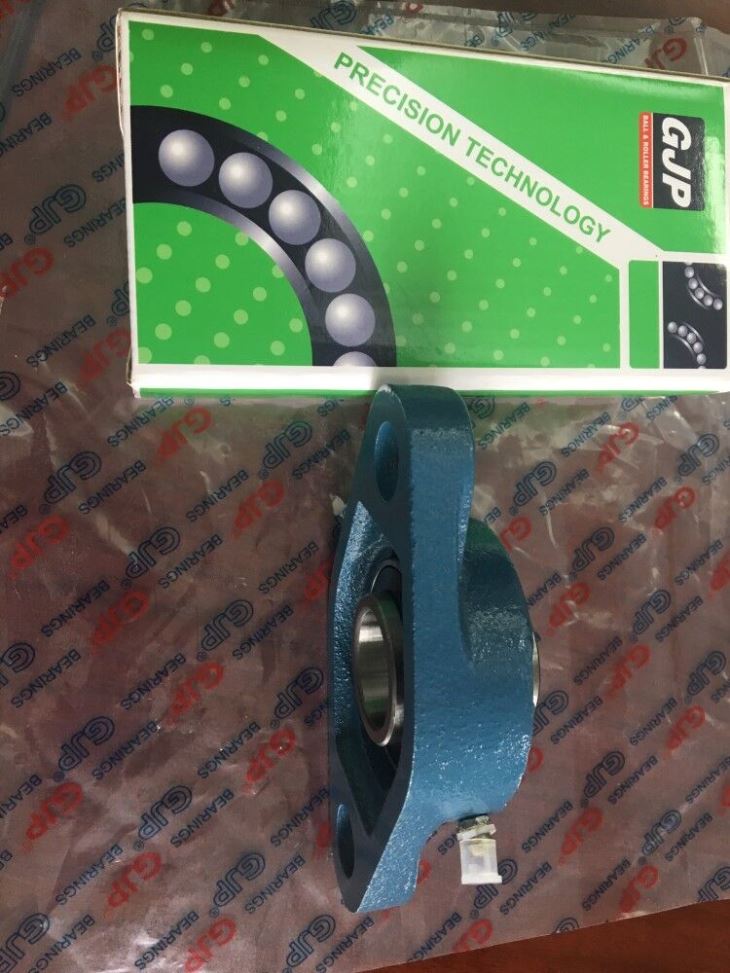

GJP 1″ Prelube Type Flange Bearing SAFT205-16 With Black Color Housing And F Seal, it is a sort of 2-bolt insert bearing unit, with a cast iron housing and a reinforced ear on each side. The insert spherical bearing is a kind of deep groove ball bearing with extended IR, which is usually made of Gcr15 material, mounted in the bearing housing.
GJP Bar Code Number: SAFT205-16
GJP 1″ Prelube Type Flange Bearing SAFT205-16 With Black Color Housing And F Seal, it is a sort of 2-bolt insert bearing unit, with a cast iron housing and a reinforced ear on each side. The insert spherical bearing is a kind of deep groove ball bearing with extended IR, which is usually made of Gcr15 material, mounted in the bearing housing. The bottom of bearing housing is usually divided into solid and hollow types, and is generally formed by cast iron material. The spherical bearing is mounted with the bearing housing to be a bearing assembly. This bearing assembly can be directly mounted to the main body of the devices by two bolts. It has a self-aligning function, and can be used to re-fill grease, etc. And it is easy to install and use.
SAFT205-16 two bolt flange unit is widely used on farming machinery. GJP is a professional flange bearing exporter, if you are interested in our products, please contact us as soon as possible.
A series of products with flanges on the outer wheel makes axial positioning simple; no bearing housing is required, making it more economical. In order to obtain low friction torque, high rigidity, and good rotation accuracy of the bearing, steel balls with small outer diameters are used. The use of hollow shafts ensures light weight and space for wiring.
The biggest feature is that the flange and the bearing are integrated. When there is no connecting piece at one end of the shaft and it needs to be fixed on a flat surface such as a plate or a wall, the flange bearing shows its advantages.
In the ultra-small bore miniature bearings, it can be divided into ZZ steel plate bearing dust cover series, RS rubber bearing seal series, Teflon bearing seal series, flange series, stainless steel series, ceramic ball series, etc. Miniature ball bearings have a wide range of uses. It is suitable for products requiring high speed rotation, low friction torque, low vibration and low noise.
Our company is a professional flange bearing exporter, we have advanced technology and excellent product quality, if you are interested in our products, please contact us, we will provide you with the best service.
GJP: SAFT205-16
AMI: KHFJT205-16
Asahi: KHFJT205-16
Browning: VF2E-116
Dodge: F2B-SXV-100
Fafnir: VCJT-1
FYH: VAFL205-16
IPTCI: SAFL205-16
Link-Belt: FX3-W216U
HUB CITY FB230-1:
Peer: FHFT205-16
Sealmaster: VFT-16E
McGill:
| Basic Dimensions | |||||
| Bore Size | Housing Length | Center Bolt to Bolt Size | Housing Width | Housing Base Thickness | Bolt Size |
| 1″ | 125MM | 99mm | 70mm | 19MM | 3/8″ |
Type: 2 Bolt Flanged Pillow Block Bearing
Housing No.: FT205
Bearing Insert No.: SA205-16
Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)
Grade For Steel Ball: G10 Grade Chrome Steel Ball.
Materia of Bearing Cage: #10 Steel
Stopping Pin Material on OD of OR: Chrome Steel Gcr15
Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.
Eccentric Locking Collar: #45 Carbon Steel
Grease: 20% to 50% Mobil Grease
Bearing Race and Steel Ball Hardness: HRC59 to HRC62
Bearing Housing Material: HT200 Grey Cast Iron
Housing Color: Green, Blue, Grey, Black Color available.
Whole Unit Assembly Type: J7 Tight Fitting
Housing Weight: 0.69KGS
Quality Control: Under ISO: 9001: 2008 Certificate
Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton
Basic Loading(Cr): 14KN
Basic Loading(Cor): 7.85KN
GJP Produce the belowing SAFT series also:
| GJP Unit NO. | Shaft Dia d | Dimensions(mm) | Bolt Used | Bearing No. | Housing No. | Housing WT(kg) | |||||||||||
| (in) | (mm) | a | e | i | g | l | s | b | z | Bi | n | (in) | (mm) | ||||
| SAFT201 | 12 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW201 | FT203 | 0.28 | |
| SAFT201-8 | 1/2 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW201-8 | FT203 | 0.28 | |
| SAFT202-9 | 9/16 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW202-9 | FT203 | 0.28 | |
| SAFT202-10 | 5/8 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW202-10 | FT203 | 0.28 | |
| SAFT202 | 15 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW202 | FT203 | 0.28 | |
| SAFT203 | 17 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW203 | FT203 | 0.28 | |
| SAFT203-11 | 11/16 | 112 | 76.2 | 17.1 | 11 | 25 | 10.5 | 60 | 33.1 | 26 | 10 | 5/16 | M8 | SAW203-11 | FT203 | 0.28 | |
| SAFT204 | 20 | 112 | 89.7 | 14.3 | 11 | 25 | 10.5 | 60 | 32.6 | 31 | 12.7 | 5/16 | M8 | SA204 | FT204 | 0.28 | |
| SAFT205-13 | 13/16 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.6 | 34.1 | 14.3 | 3/8 | M10 | SA205-13 | FT205 | 0.47 | |
| SAFT205-14 | 7/8 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.6 | 34.1 | 14.3 | 3/8 | M10 | SA205-14 | FT205 | 0.47 | |
| SAFT205-15 | 15/16 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.6 | 34.1 | 14.3 | 3/8 | M10 | SA205-15 | FT205 | 0.47 | |
| SAFT205-16 | 1 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.6 | 34.1 | 14.3 | 3/8 | M10 | SA205-16 | FT205 | 0.47 | |
| SAFT205 | 25 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.6 | 34.1 | 14.3 | 3/8 | M10 | SA205 | FT205 | 0.47 | |
| SAFT206-17 | 1 1/16 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 40.1 | 38.1 | 15.9 | 3/8 | M10 | SA206-17 | FT206 | 0.55 | |
| SAFT206-18 | 1 1/8 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 40.1 | 38.1 | 15.9 | 3/8 | M10 | SA206-18 | FT206 | 0.55 | |
| SAFT206-19 | 1 3/16 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 40.1 | 38.1 | 15.9 | 3/8 | M10 | SA206-19 | FT206 | 0.55 | |
| SAFT206-20 | 1 1/4 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 40.1 | 38.1 | 15.9 | 3/8 | M10 | SA206-20 | FT206 | 0.55 | |
| SAFT206 | 30 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 40.1 | 38.1 | 15.9 | 7/16 | M10 | SA206 | FT206 | 0.55 | |
| SAFT207-20 | 1 1/4 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 44.5 | 42.9 | 17.5 | 7/16 | M12 | SA207-20 | FT207 | 0.85 | |
| SAFT207-21 | 1 5/16 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 44.5 | 42.9 | 17.5 | 7/16 | M12 | SA207-21 | FT207 | 0.85 | |
| SAFT207-22 | 1 3/8 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 44.5 | 42.9 | 17.5 | 7/16 | M12 | SA207-22 | FT207 | 0.85 | |
| SAFT207-23 | 1 7/16 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 44.5 | 42.9 | 17.5 | 7/16 | M12 | SA207-23 | FT207 | 0.85 | |
| SAFT207 | 35 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 44.5 | 42.9 | 17.5 | 7/16 | M12 | SA207 | FT207 | 0.85 | |
| SAFT208-24 | 1 1/2 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 51.2 | 49.2 | 19 | 7/16 | M12 | SA208-24 | FT208 | 0.9 | |
| SAFT208-25 | 1 9/16 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 51.2 | 49.2 | 19 | 7/16 | M12 | SA208-25 | FT208 | 0.9 | |
| SAFT208 | 40 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 51.2 | 49.2 | 19 | 7/16 | M12 | SA208 | FT208 | 0.9 | |
| SAFT209-26 | 1 5/8 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 52 | 49.2 | 19 | 1/2 | M14 | SA209-26 | FT209 | 1.05 | |
| SAFT209-27 | 1 11/16 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 52 | 49.2 | 19 | 1/2 | M14 | SA209-27 | FT209 | 1.05 | |
| SAFT209-28 | 1 3/4 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 52 | 49.2 | 19 | 1/2 | M14 | SA209-28 | FT209 | 1.05 | |
| SAFT209 | 45 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 52 | 49.2 | 19 | 1/2 | M14 | SA209 | FT209 | 1.05 | |
| SAFT210-29 | 1 13/16 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 54.8 | 51.6 | 19 | 1/2 | M14 | SA210-29 | FT210 | 1.5 | |
| SAFT210-30 | 1 7/8 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 54.8 | 51.6 | 19 | 1/2 | M14 | SA210-30 | FT210 | 1.5 | |
| SAFT210-31 | 1 15/16 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 54.8 | 51.6 | 19 | 1/2 | M14 | SA210-31 | FT210 | 1.5 | |
| SAFT210-32 | 2 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 54.8 | 51.6 | 19 | 1/2 | M14 | SA210-32 | FT210 | 1.5 | |
| SAFT210 | 50 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 54.8 | 51.6 | 19 | 1/2 | M14 | SA210 | FT210 | 1.5 | |
GJP also produce Ductile Iron Material 2-Bolt Bearing Housing Units as per belowing sizes:
| GJP Unit No. | Shaft Dia | Dimensions(mm) | Bolt Size | Bearing No. | Housing No. | Weight (kg) | |||||||||
| d | |||||||||||||||
| (in) | (mm) | L | J | A1 | A | N | H | s | B | (mm) | (in) | ||||
| SBFTD201-08 | 1/2 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | M6 | 1/4 | SB201-08 | FTD203 | 0.57 | |
| SBFTD201 | 12 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | M6 | 1/4 | SB201 | FTD203 | 0.57 | |
| SBFTD202-10 | 5/8 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | M6 | 1/4 | SB202-10 | FTD203 | 0.57 | |
| SBFTD202 | 15 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | M6 | 1/4 | SB202 | FTD203 | 0.57 | |
| SBFTD203 | 17 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | 81 | M6 | 1/4 | SB203 | FTD203 | 0.57 | |
| SBFTD204-12 | 3/4 | 90.5 | 71.4 | 11.1 | 19.8 | 8.7 | 57.2 | 7 | 29.1 | M8 | 5/16 | SB204-12 | FTD204 | 0.59 | |
| SBFTD204 | 20 | 90.5 | 71.4 | 11.1 | 19.8 | 8.7 | 57.2 | 7 | 29.1 | M8 | 5/16 | SB204 | FTD204 | 0.59 | |
| SBFTD205-14 | 7/8 | 95 | 76.2 | 11.1 | 21 | 8.7 | 63.5 | 7.5 | 30.6 | M8 | 5/16 | SB205-14 | FTD205 | 0.84 | |
| SBFTD205-15 | 15/16 | 95 | 76.2 | 11.1 | 21 | 8.7 | 63.5 | 7.5 | 30.6 | M8 | 5/16 | SB205-15 | FTD205 | 0.84 | |
| SBFTD205-16 | 1 | 95 | 76.2 | 11.1 | 21 | 8.7 | 63.5 | 7.5 | 30.6 | M8 | 5/16 | SB205-16 | FTD205 | 0.84 | |
| SBFTD205 | 25 | 95 | 76.2 | 11.1 | 21 | 8.7 | 63.5 | 7.5 | 30.6 | M8 | 5/16 | SB205 | FTD205 | 0.84 | |
| SBFTD206-17 | 1 1/16 | 113 | 90.5 | 11.9 | 22.6 | 10.3 | 78.6 | 8 | 34.1 | M10 | 3/8 | SB206-17 | FTD206 | 1.19 | |
| SBFTD206-18 | 1 1/8 | 113 | 90.5 | 11.9 | 22.6 | 10.3 | 78.6 | 8 | 34.1 | M10 | 3/8 | SB206-18 | FTD206 | 1.19 | |
| SBFTD206-19 | 1 3/16 | 113 | 90.5 | 11.9 | 22.6 | 10.3 | 78.6 | 8 | 34.1 | M10 | 3/8 | SB206-19 | FTD206 | 1.19 | |
| SBFTD206-20 | 1 1/4 | 113 | 90.5 | 11.9 | 22.6 | 10.3 | 78.6 | 8 | 34.1 | M10 | 3/8 | SB206-20 | FTD206 | 1.19 | |
| SBFTD206 | 30 | 113 | 90.5 | 11.9 | 22.6 | 10.3 | 78.6 | 8 | 34.1 | M10 | 3/8 | SB206 | FTD206 | 1.19 | |
| SBFTD207-20 | 1 1/4 | 122 | 100 | 12.7 | 23.8 | 10.3 | 89 | 8.5 | 36.2 | M10 | 3/8 | SB207-20 | FTD207 | 1.56 | |
| SBFTD207-21 | 1 5/16 | 122 | 100 | 12.7 | 23.8 | 10.3 | 89 | 8.5 | 36.2 | M10 | 3/8 | SB207-21 | FTD207 | 1.56 | |
| SBFTD207-22 | 1 3/8 | 122 | 100 | 12.7 | 23.8 | 10.3 | 89 | 8.5 | 36.2 | M10 | 3/8 | SB207-22 | FTD207 | 1.56 | |
| SBFTD207-23 | 1 7/16 | 122 | 100 | 12.7 | 23.8 | 10.3 | 89 | 8.5 | 36.2 | M10 | 3/8 | SB207-23 | FTD207 | 1.56 | |
| SBFTD207 | 35 | 122 | 100 | 12.7 | 23.8 | 10.3 | 89 | 8.5 | 36.2 | M10 | 3/8 | SB207 | FTD207 | 1.56 | |
We are a factory focusing on producing high-quality bearings, established in 1987. Over the years, we have been committed to providing the highest quality bearing products to ensure customers get an efficient and reliable user experience.
