70mm Pillow Block Bearing UCP214 for Powder Equipment

Description-70mm Bore Pillow Block Bearing UCP214

GJP Bar Code Number: 6935329802414

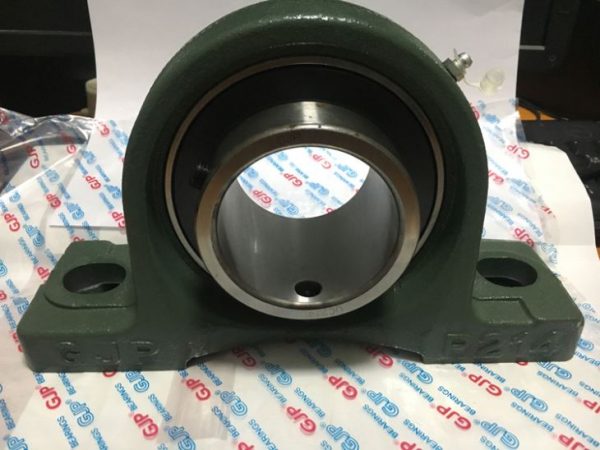

GJP 70mm Pillow Block Bearing UCP214 For Powder Equipment, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

Interchange

GJP: UCP214

AMI: UCP214

IPTCI: UCP214

NSK: UCP214

Peer: FHSP214G

Fafnir: RASC-70

Fafnir: YAS-70

RHP: NP-70

SKF: SY 70 TF

Technical Data for GJP UCP214

Housing No.: P214

Bearing Insert No.: UC214

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 4.45KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

GJP advantage:

①.easy to installation

②.Smooth operating with no noise

③.Strict quality management system

④.Superior equipment

⑤.Professional services

⑥.OEM/ODM services

⑦.Free sample

⑧.High quality products

⑨.Variety types for selection

⑩.Competitive price
