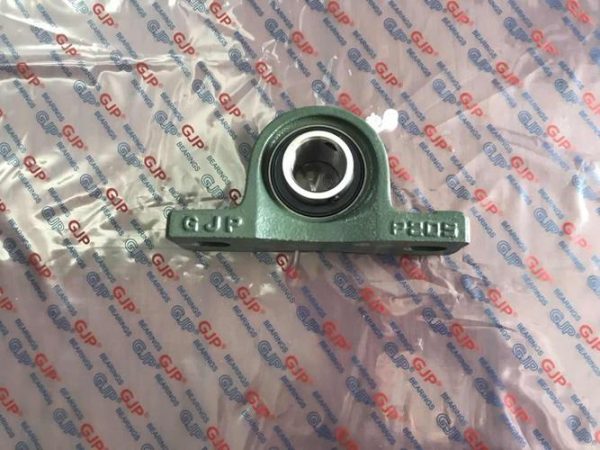

7/8” Set Screw Locking Pillow Block Bearing UCP205-14

Description-7/8” Inch Bore UCP205-14 Pillow Block Bearing

GJP Bar Code Number: 6935329802063

GJP 7/8″ Set Screw Locking Pillow Block Bearing UCP205-14 with solid base housing and radial insert ball bearing with grub set screw to lock to the shaft. Which is smaller size and has grease zerk on 45 degree angle, and the insert bearing has a wide inner ring with spherical outer diameter, and there are four star seal and with ball point set screw, bearing insert and housing are normally assemblied with J7 tight fitting.

Interchange

GJP: UCP205-14

AMI: UCP205-14

IPTCI: UCP205-14

NSK: UCP205-14

NTN: UCP205-014D1

Peer: FHSP205-14G

Fafnir: RASC-7/8″

Fafnir: YAS-7/8″

RHP: NP-7/8″

SKF: SY 7/8″ TF

Sealmaster: NP-14

Technical Data for GJP UCP205-14

Housing No.: P205

Bearing Insert No.: UC205-14

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 0.6KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

GJP advantage:

GJP efforts on Continuous research and development of new products, For the development of international market, our company is to make two breakthroughs, namely network and service. The bearing insert, cast iron material housing, ductile material housing(HT450), oxidized bearing insert, and stainless steel material are four main models, which have successfully entered foreign market. and improve the production quality to meet the higher requirements of the client.

FAQ

Are there any customers who buy from your company the bearings which you don’t produce by yourself?

Yes, a lot, actually at the beginning we don’t sell other bearings which we don’t produce by ourself, as we are not familiar with them, but since we start to focus on promoting GJP Brand Bearings in all over the world, we start to have cooperation with our GJP sole dealers or Distributors, as a distributors, they sell all types of different bearings to their end users or customers, we used to have experiences that some of the end users in USA, they came to our dealer’s shop and wanna to buy one 6202 2RS NR with 15.875 special inner bore at GJP’s brand, but at that time our dealer told them that GJP don’t produce radial ball bearings, customer is so upset because they like GJP brand and are satisfied with GJP’s Pillow Block Bearing quality, finally they were forced to choose other brand, from this experience, after consulting with our dealer, GJP start to organize other types of bearings for our dealers which mark at GJP brand, since around 10 years’ develop, we work so well and we’re familiar with all types of bearings chains.
