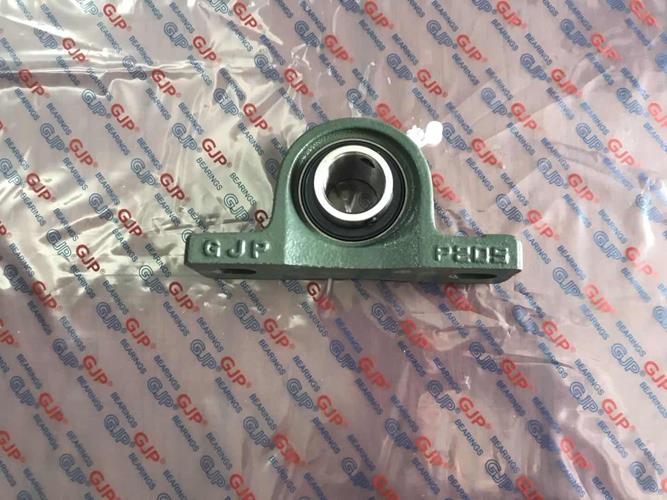

Rolamento Esférico Pillow Block 13/16” UCP205-13

Description-13/16” Inch Bore UCP205-13 Pillow Block Bearing

GJP Bar Code Number: 6935329802056

GJP 13/16″ Inch Pillow Block Bearing UCP205-13 with solid base housing and radial insert ball bearing with grub set screw to lock to the shaft. Which is smaller size and has grease zerk on 45 degree angle, and the insert bearing has a wide inner ring with spherical outer diameter, and there are four star seal and with ball point set screw, bearing insert and housing are normally assemblied with J7 tight fitting.

Features of stainless steel pillow block bearings

1. During the working process, stainless steel pillow block bearings work stably, with low noise, corrosion resistance, and are widely used.
2. Stainless steel pillow block bearings can be used in various products that are easy to rust and strong corrosion, and are widely used.
3. Compared with ordinary bearing steel, stainless steel pillow block bearings have stronger anti-rust and anti-corrosion properties. Choose appropriate lubricants, dust caps, etc., and can be used in the environment of -60℃~+300℃.
4. Stainless steel pillow block bearings are widely used in food processing, equipment and pharmaceutical machinery due to their high mechanical strength and large load capacity.

304stainless steel pillow block bearings are a kind of stainless steel bearings, which are very common and widely used. Compared with ordinary stainless steel bearings, 304stainless steel pillow block bearings are non-magnetic, and have good rust and corrosion resistance. The specific characteristics are as follows:

1. Good corrosion resistance. Ordinary stainless steel is not resistant to corrosion and will be corroded in an acid-base environment. Stainless steel pillow block bearings can operate freely in an acid-base environment.
2. The anti-rust 304 rolamento de aço inoxidável can be used in direct contact with liquid, and it will not rust even if it is placed in water.
3. Non-magnetic ordinary stainless steel bearings are magnetic and can be picked up by magnets directly, while 304 stainless steel bearings are non-magnetic and suitable for use in special environments.

Intercâmbio

GJP: UCP205-13

AMI: UCP205-13

IPTCI: UCP205-13

NSK: UCP205-13

Peer: FHSP205-13G

Fafnir: RASC-13/16″

Fafnir: YAS-13/16″

RHP: NP-13/16″

SKF: SY 13/16″ TF

Sealmaster: NP-13

Technical Data for GJP UCP205-13

Housing No.: P205

Bearing Insert No.: UC205-13

Material do inserto do mancal: aço cromado 100% Gcr15 (AISI 52100)

Grau para esfera de aço: Esfera de aço cromado de grau G10.

Material da gaiola do rolamento: aço #10

Material do Pino de Parada no DE de OR: Aço Cromado Gcr15

Tipo de vedação: Vedação F, Vedação L3 e Vedação NBR normal estão disponíveis para seleção dos clientes.

Material do parafuso de fixação: 35CrMo

Graxa: 20% a 50% Mobil Grease

Dureza ao redor do parafuso de ajuste: HRC49 a HRC 50

Pista do rolamento e dureza da esfera de aço: HRC59 a HRC62

Material da carcaça do mancal: ferro fundido cinza HT200

Cor da carcaça: Verde, Azul, Cinza, Preto Cor disponível.

Tipo de conjunto de unidade inteira: J7 encaixe apertado

Housing Weight: 0.6KGS

Controle de Qualidade: Sob ISO: 9001: 2008 Certificado

Pacote: 1 * 1 saco poli GJP único + 1 * 1 caixa colorida GJP + 1 * 1 caixa externa GJP

Vantagem GJP:

Perguntas frequentes

Your factory is producing the pillow block housing only? I mean the housing, or could you produce insert ball bearing also?

Wow! It’s a very professional question, for your information, our factory could produce both the outer housing, but also the inner ball bearing insert, we have two factories, which locates by each other, which could make sure our company control from the beginning to the end, but for the bearing insert, we mainly produce UC series, HC Series, SA Series, SB Series, UK series (from size 201 to 218), for UCX Series, if our customers need, they could send us the bearing insert by themselves or we could help them purchase from other of our partners, of course, for the Eccentric Locking Collars, Adapater and Sleeves, set Screw,we need to buy from outside of our factory.
