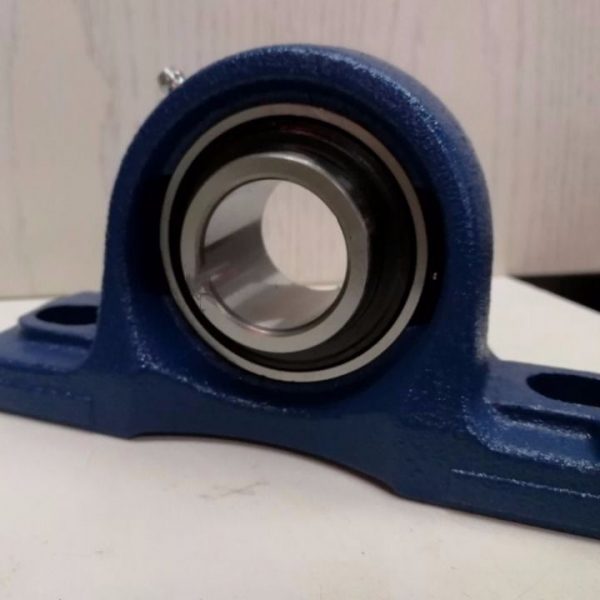

pillow block mounted bearing

pillow block mounted bearing

The housing of pillow block mounted bearing can be made of precision gas cut rolled steel, which looks similar to cast steel to the naked eye, but is tighter than cast iron or cast steel in microstructure, so this material is stronger, impact resistant, and resistant to heavy pressure, and the risk of shell fracture under severe conditions is greatly reduced.

Share on facebook
Share on twitter
Share on linkedin

Product Details

The housing of pillow block mounted bearing can be made of precision gas cut rolled steel, which looks similar to cast steel to the naked eye, but is tighter than cast iron or cast steel in microstructure, so this material is stronger, impact resistant, and resistant to heavy pressure, and the risk of shell fracture under severe conditions is greatly reduced.

The pillow block mounted bearing housing material standard is JIS G3101 SS400 (general structural rolled steel with strong mechanical properties), and the commonly used FC200 (gray cast iron), FCD450 (ductile iron), SC450 (cast steel), compared to the load, reversal load, pulsation load, tensile strength of rolled steel, etc., are better Some, therefore, the same size, different material bearing housing shell, the use of rolled steel material is more reliable.

The pillow block mounted bearing is suitable for applications involving heavy loads and vibrations, such as conveyors, trucks and overhead cranes in steel mills, mining machinery, crushers, vibrating screens and pollution control equipment.



pillow block mounted bearing



pillow block mounted bearing

UCPX series pillow block bearings

Bearing Unit NO.

Shaft Dia d

Dimensions(mm)

Bolt Used

Bearing No.

Housing No.

HousingWt (kg)

(in)

(mm)

h

a

e

b

s2

s1

g

w

Bi

n

(in)

(mm)

UCPX05-16UCPX05

1

25

44.4

159

119

51

25

17

18

85

38.1

15.9

1/2

M14

UCX05-16UCX05

PX05

1.02

UCPX06-19UCPX06-20UCPX06

1-3/161-1/4

30

47.6

175

127

57

25

17

20

94

42.9

17.5

1/2

M14

UCX06-19UCX06-20UCX06

PX06

1.33

UCPX07-22UCPX07-23UCPX07

1-3/81-7/16

35

54

203

144

57

30

17

22

105

49.2

19

1/2

M14

UCX07-22UCX07-23UCX07

PX07

1.71

UCPX08-24UCPX08

1-1/2

40

58.7

222

156

67

32

20

26

113

49.2

19

5/8

M16

UCX08-24UCX08

PX08

2.09

UCPX09-26UCPX09-27UCPX09-28UCPX09

1-5/81-11/161-3/4

45

58.7

222

156

67

33

20

26

116

51.6

19

5/8

M16

UCX09-26UCX09-27UCX09-28UCX09

PX09

2.3

UCPX10-31UCPX10-32UCPX10

1-15/162

50

63.5

241

171

73

36

20

27

126

55.6

22.2

5/8

M16

UCX10-31UCX10-32UCX10

PX10

2.85

UCPX11-35UCPX11

2-3/16

55

69.8

260

184

79

36

25

30

139

65.1

25.4

3/4

M20

UCX11-35UCX11

PX11

4.04

UCPX12-38UCPX12-39UCPX12

2-3/82-7/16

60

76.2

286

203

83

41

25

32

151

65.1

25.4

3/4

M20

UCX12-38UCX12-39UCX12

PX12

4.85

UCPX13-40UCPX13

2-1/2

65

76.2

286

203

83

41

25

32

154

74.6

30.2

3/4

M20

UCX13-40UCX13

PX13

5

UCPX14-44UCPX14

2-3/4

70

88.9

330

229

89

51

27

35

172

77.8

33.3

7/8

M22

UCX14-44UCX14

PX14

7.12

UCPX15-47UCPX15-48UCPX15

2-15/163

75

88.9

330

229

89

51

27

35

177

82.6

33.3

7/8

M22

UCX15-47UCX15-48UCX15

PX15

6.65

UCPX16-50UCPX16

3-1/8

80

101.6

381

283

102

59

27

42

197

85.7

34.1

7/8

M22

UCX16-50UCX16

PX16

9.5

UCPX17-52UCPX17

3-1/4

85

101.6

381

283

102

59

27

42

202

96

39.7

7/8

M22

UCX17-52UCX17

PX17

10.64

UCPX18-56UCPX18

3-1/2

90

101.6

381

283

111

60

27

45

206

104

42.9

7/8

M22

UCX18-56UCX18

PX18

11.5

UCPX20-63UCPX20-64UCPX20

3-15/164

100

127

432

337

121

64

33

52

250

117.5

49.2

1-1/8

M30

UCX20-63UCX20-64UCX20

PX20

19.76
