pillow block bearing 60mm

pillow block bearing 60mm

During the operation of pillow block bearings 60mm bearings, the bearing seat and surface are coated with lubricating oil, and then the bearing is put into the bearing seat. At this time, the bearing and bearing seat are sleeved on the shaft together, and dragged to the relevant location to install. In this process, it should be noted that the fixed bolts should not be tightened in a hurry, because the bearing shell should be able to rotate flexibly and freely inside the bearing. After the shaft itself finds the correct position, the bearing seat bolts are tightened well. Then there is the eccentric sleeve of pillow block bearings 60mm, first fix the eccentric sleeve on the steps, then tighten it in a clockwise direction, put a small iron rod on the countersunk hole of the eccentric sleeve to make the eccentric sleeve installed firmly, and finally Install the hex screws.

Share on facebook
Share on twitter
Share on linkedin

Product Details

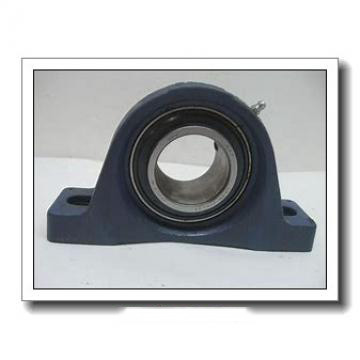

The inner diameter of UCPX12-38 pillow block bearings is 60mm. Pillow block bearings are high-precision components made up of grease-sealed deep groove ball bearings and bearing housings of various shapes. The bearing assembly can be directly installed on the main body of the mechanical device through several bolts, has the self-aligning function, and can supplement the grease, etc. It is a product that is very easy to install and use.
During the operation of pillow block bearings 60mm bearings, the bearing seat and surface are coated with lubricating oil, and then the bearing is put into the bearing seat. At this time, the bearing and bearing seat are sleeved on the shaft together, and dragged to the relevant location to install. In this process, it should be noted that the fixed bolts should not be tightened in a hurry, because the bearing shell should be able to rotate flexibly and freely inside the bearing. After the shaft itself finds the correct position, the bearing seat bolts are tightened well. Then there is the eccentric sleeve of pillow block bearings 60mm, first fix the eccentric sleeve on the steps, then tighten it in a clockwise direction, put a small iron rod on the countersunk hole of the eccentric sleeve to make the eccentric sleeve installed firmly, and finally Install the hex screws.

1 inch pillow block bearing

All models of pillow block bearing

Bearing Unit NO.

Shaft Dia d

Dimensions(mm)

Bolt Used

Bearing No.

Housing No.

Housing Wt (kg)

(in)

(mm)

h

a

e

b

s2

s1

g

w

Bi

n

(in)

(mm)

UCPX05-16

UCPX05

1

25

44.4

159

119

51

25

17

18

85

38.1

15.9

1/2

M14

UCX05-16 UCX05

PX05

1.02

UCPX06-19

UCPX06-20

UCPX06

1-3/16 1-1/4

30

47.6

175

127

57

25

17

20

94

42.9

17.5

1/2

M14

UCX06-19 UCX06-20 UCX06

PX06

1.33

UCPX07-22

UCPX07-23

UCPX07

1-3/8 1-7/16

35

54

203

144

57

30

17

22

105

49.2

19

1/2

M14

UCX07-22 UCX07-23 UCX07

PX07

1.71

UCPX08-24

UCPX08

1-1/2

40

58.7

222

156

67

32

20

26

113

49.2

19

5/8

M16

UCX08-24 UCX08

PX08

2.09

UCPX09-26

UCPX09-27 UCPX09-28

UCPX09

1-5/8 1-11/16 1-3/4

45

58.7

222

156

67

33

20

26

116

51.6

19

5/8

M16

UCX09-26 UCX09-27 UCX09-28 UCX09

PX09

2.3

UCPX10-31 UCPX10-32

UCPX10

1-15/16 2

50

63.5

241

171

73

36

20

27

126

55.6

22.2

5/8

M16

UCX10-31 UCX10-32 UCX10

PX10

2.85

UCPX11-35

UCPX11

2-3/16

55

69.8

260

184

79

36

25

30

139

65.1

25.4

3/4

M20

UCX11-35 UCX11

PX11

4.04

UCPX12-38

UCPX12-39

UCPX12

2-3/8 2-7/16

60

76.2

286

203

83

41

25

32

151

65.1

25.4

3/4

M20

UCX12-38 UCX12-39 UCX12

PX12

4.85

UCPX13-40

UCPX13

2-1/2

65

76.2

286

203

83

41

25

32

154

74.6

30.2

3/4

M20

UCX13-40 UCX13

PX13

5

UCPX14-44

UCPX14

2-3/4

70

88.9

330

229

89

51

27

35

172

77.8

33.3

7/8

M22

UCX14-44 UCX14

PX14

7.12

UCPX15-47 UCPX15-48

UCPX15

2-15/16 3

75

88.9

330

229

89

51

27

35

177

82.6

33.3

7/8

M22

UCX15-47 UCX15-48 UCX15

PX15

6.65

UCPX16-50

UCPX16

3-1/8

80

101.6

381

283

102

59

27

42

197

85.7

34.1

7/8

M22

UCX16-50 UCX16

PX16

9.5

UCPX17-52

UCPX17

3-1/4

85

101.6

381

283

102

59

27

42

202

96

39.7

7/8

M22

UCX17-52 UCX17

PX17

10.64

UCPX18-56

UCPX18

3-1/2

90

101.6

381

283

111

60

27

45

206

104

42.9

7/8

M22

UCX18-56 UCX18

PX18

11.5

UCPX20-63 UCPX20-64

UCPX20

3-15/16 4

100

127

432

337

121

64

33

52

250

117.5

49.2

1-1/8

M30

UCX20-63 UCX20-64 UCX20

PX20

19.76

60mm pillow block bearing

UCPX12-38 pillow block bearings 60mm is our company’s main product, GJP brand has been in China for more than ten years, we are committed to the global supply of bearings. The company’s products are widely used in various industries such as construction machinery, machine tools, automobiles, metallurgy, mining, machinery, electric power, railway, chemical industry, etc. The customers are all over the country, and the company has established a good supply and demand cooperation relationship and an honest system, which has won the unanimous recognition of customers. and widely acclaimed.

We always adhere to the service tenet of “satisfying customers”, keep pace with the times, continuously improve the company’s management level and the comprehensive quality of employees, and provide our customers with better products and better services, so that customers can achieve higher Benefit to achieve “worry-free operation”. We sincerely hope to join hands with colleagues from all walks of life to develop together and create brilliance together!
