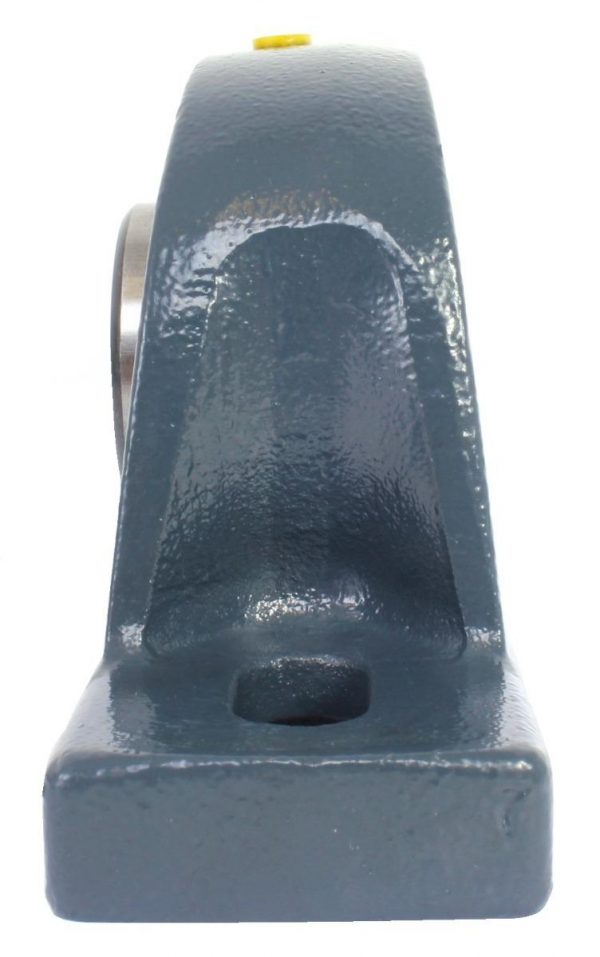

60mm pillow block bearing UCPX12

There is a gap between the inner hole of the 60mm pillow block bearing and the shaft, and the inner ring of the bearing is fixed on the shaft with a top wire, an eccentric sleeve or an adapter sleeve, and rotates with the shaft. The bearing with seat has compact structure, convenient loading and unloading, perfect sealing, suitable for simple support, commonly used in mining, metallurgy, agriculture, chemical industry, textile, printing and dyeing, conveying machinery, etc.

The bearing seat is generally cast. Commonly used seats are vertical seat, square seat, boss square seat, boss round seat, diamond seat, ring seat, slider seat and so on.

Category Pillow Block Bearing Tags 60mm pillow block bearing, pillow block bearings manufacturer, spherical insert bearings, UCPX12, UCPX12 pillow block bearings

Product Details

60mm pillow block bearing refers to the inner diameter of 60mm, model UCPX12 spherical bearing with seat. A pillow block bearing is a bearing unit that combines a rolling bearing and a bearing seat. It is actually a variant of a deep groove ball bearing. It plays a role in regulating the heart. Most of the outer spherical bearings are made of spherical outer diameter and installed together with imported bearing seats with spherical inner holes. They have various structural forms and good versatility and interchangeability. At the same time, the 60mm pillow block bearing is also designed to be self-aligning, easy to install, and has a double-structured sealing device that can work in harsh environments. Insert spherical bearings are preferably used in applications requiring simple equipment and components, such as agricultural machinery, transportation systems or construction machinery.

Product number

Outer spherical UC bearing with set screw;
UK type bearing with tapered hole and outer spherical surface;

60mm pillow block bearing is a combination of grease-sealed deep groove ball bearings and various shapes of bearing housings. The bearing assembly can be directly installed on the main body of the mechanical device through several bolts, has the self-aligning function, and can supplement the grease, etc. It is a product that is very easy to install and use.

All models of pillow block bearing

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)										Bolt Used		Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	h	a	e	b	s2	s1	g	w	Bi	n	(in)	(mm)	Bearing No.	Housing No.	Housing Wt (kg)
UCPX05-16 UCPX05	1	25	44.4	159	119	51	25	17	18	85	38.1	15.9	1/2	M14	UCX05-16 UCX05	PX05	1.02
UCPX06-19 UCPX06-20 UCPX06	1-3/16 1-1/4	30	47.6	175	127	57	25	17	20	94	42.9	17.5	1/2	M14	UCX06-19 UCX06-20 UCX06	PX06	1.33
UCPX07-22 UCPX07-23 UCPX07	1-3/8 1-7/16	35	54	203	144	57	30	17	22	105	49.2	19	1/2	M14	UCX07-22 UCX07-23 UCX07	PX07	1.71
UCPX08-24 UCPX08	1-1/2	40	58.7	222	156	67	32	20	26	113	49.2	19	5/8	M16	UCX08-24 UCX08	PX08	2.09
UCPX09-26 UCPX09-27 UCPX09-28 UCPX09	1-5/8 1-11/16 1-3/4	45	58.7	222	156	67	33	20	26	116	51.6	19	5/8	M16	UCX09-26 UCX09-27 UCX09-28 UCX09	PX09	2.3
UCPX10-31 UCPX10-32 UCPX10	1-15/16 2	50	63.5	241	171	73	36	20	27	126	55.6	22.2	5/8	M16	UCX10-31 UCX10-32 UCX10	PX10	2.85
UCPX11-35 UCPX11	2-3/16	55	69.8	260	184	79	36	25	30	139	65.1	25.4	3/4	M20	UCX11-35 UCX11	PX11	4.04
UCPX12-38 UCPX12-39 UCPX12	2-3/8 2-7/16	60	76.2	286	203	83	41	25	32	151	65.1	25.4	3/4	M20	UCX12-38 UCX12-39 UCX12	PX12	4.85
UCPX13-40 UCPX13	2-1/2	65	76.2	286	203	83	41	25	32	154	74.6	30.2	3/4	M20	UCX13-40 UCX13	PX13	5
UCPX14-44 UCPX14	2-3/4	70	88.9	330	229	89	51	27	35	172	77.8	33.3	7/8	M22	UCX14-44 UCX14	PX14	7.12
UCPX15-47 UCPX15-48 UCPX15	2-15/16 3	75	88.9	330	229	89	51	27	35	177	82.6	33.3	7/8	M22	UCX15-47 UCX15-48 UCX15	PX15	6.65
UCPX16-50 UCPX16	3-1/8	80	101.6	381	283	102	59	27	42	197	85.7	34.1	7/8	M22	UCX16-50 UCX16	PX16	9.5
UCPX17-52 UCPX17	3-1/4	85	101.6	381	283	102	59	27	42	202	96	39.7	7/8	M22	UCX17-52 UCX17	PX17	10.64
UCPX18-56 UCPX18	3-1/2	90	101.6	381	283	111	60	27	45	206	104	42.9	7/8	M22	UCX18-56 UCX18	PX18	11.5
UCPX20-63 UCPX20-64 UCPX20	3-15/16 4	100	127	432	337	121	64	33	52	250	117.5	49.2	1-1/8	M30	UCX20-63 UCX20-64 UCX20	PX20	19.76

Advantages of pillow block bearing:

1. Easy to install
The outer spherical bearing with vertical seat is composed of an outer spherical bearing and a bearing seat. When using, there is no need to design a bearing box. It is small in size and simple in structure. It can be directly installed on the design part of the host with bolts, which is easy to use.

2. Simple and practical
The bearing seat is an integral structure with large bearing capacity and good rigidity. The bearing and the bearing seat can be interchanged, that is, the same bearing seat can be installed with different types of bearings; similarly, the same type of bearing can be selected from various types of bearing seats.

3. Automatic adjustment
The outer spherical bearing with seat can work when the two bearing seats are not on the same axis, and the maximum automatic adjustment angle can reach 2°.

4. Auxiliary accessories

The inner diameter of the outer spherical bearing with vertical seat adopts “+” tolerance to form a clearance fit with the shaft. The bearing is fixed on the shaft through some jacking wires, eccentric sleeves or adapter sleeves on the inner ring, which reduces the friction to the shaft. Accuracy requirements, installation or replacement of bearings is extremely convenient.

5. Small working environment requirements
The outer spherical bearing with seat is generally pre-filled with grease and adopts double-layer or triple-lip seal form. It is suitable for use in occasions with a lot of dust, mud, water and corrosive media, which is conducive to the operation of the main engine.

6. Accuracy advantages
The seated spherical bearing has good rotational accuracy and can be easily re-lubricated. The clearance is larger than that of a deep groove ball bearing of the same size, so the temperature difference has little effect on its accuracy.
