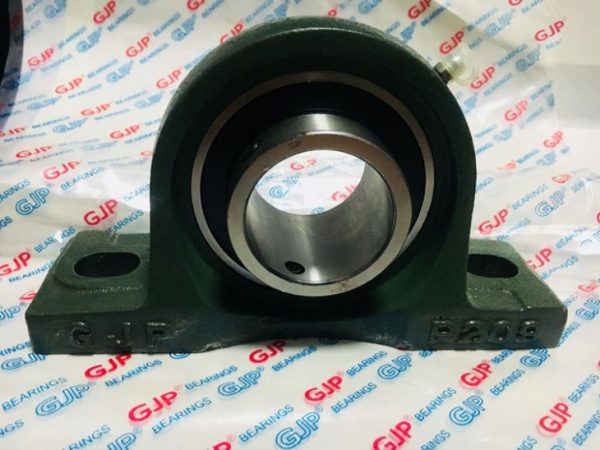

45mm Pillow Block Bearing UCP209 for Packaging Machine

45mm Pillow Block Bearing UCP209 for Packaging Machine

GJP 45mm Pillow Block Bearing UCP209 is a high-quality bearing device suitable for various mechanical and industrial applications. It features a high-strength cast iron housing and a 45mm diameter inner gear, providing outstanding performance and reliability under high load conditions.

The GJP 45mm Pillow Block Bearing UCP209 uses high-precision spherical bearings, ensuring stable and noise-free operation. It also has a low friction coefficient and a long service life, improving efficiency by reducing energy losses during operation.

It is easy to install and suitable for various machinery requiring stable support and precise positioning. Its reliability and high performance make it the preferred equipment for many industries such as manufacturing, machining, mining, and metallurgy.

SKU 3b2fd30557a6 Category Tags ,

Product Details

Description-45MM metric bore Pillow Block Bearing For Packaging Machine Unit UCP209

GJP Bar Code Number: 6935329802230

GJP 45mm Pillow Block Bearing For Packaging Machine UCP209, which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

The pillow block bearing for packaging machine produced by GJP uses high-quality raw materials, and the product quality is guaranteed. Please contact us if you would like to order pillow block bearing for packaging machine.



Interchange

GJP: UCP209

AMI: UCP209

IPTCI: UCP209

NSK: UCP209

Peer: FHSP209G

Fafnir: RASC-45

Fafnir: YAS-45

RHP: NP-45

SKF: SY 45 TF

Sealmaster:



45mm Pillow Block Bearing UCP209 for Packaging Machine

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

45MM

54MM

190MM

146MM

54MM

21MM

17MM

106MM

M14



Technical Data for GJP UCP209

Housing No.: P209

Bearing Insert No.: UC209

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 1.40KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

45mm Pillow Block Bearing

UCP209

Pillow Block Bearing for Packaging Machine

45mm UCP209



GJP advantage:

GJP is a leading supplier of UCP209 bearings in the market. Our full stock ensures that we can cater to all customer needs regardless of the quantity required. Whether it’s a small or big order, we can supply you with the best quality UCP209 bearings without compromising on the quality.

Our big production capacity is designed to cater to all customer needs efficiently. GJP can supply big quantities of UCP209 bearings in an urgent requested delivery time of up to 20 to 30 days. This means that even if you have an urgent order, we can meet your requirements with ease.

At GJP, we understand that quality is paramount, and that’s why we ensure that all our UCP209 bearings undergo strict quality checks before dispatch. We aim to provide our customers with the best quality bearings that are durable, long-lasting, and reliable to ensure maximum customer satisfaction.

We are committed to providing our customers with the best customer service experience. Our customer support team is always ready to help you with any queries you may have regarding our UCP209 bearings. Whether you need help with technical specifications or have general queries, our team will be more than happy to assist you.

In summary, when it comes to UCP209 bearings, GJP is your trusted supplier. We have a full stock of bearings, and our big production capacity ensures that we can cater to all customer needs. With strict quality checks and excellent customer support, you can trust GJP to meet all your UCP209 bearing requirements.
