3/4” 2 Bolt Flange Bearing Unit UCFL204-12

3/4'' 2 Bolt Flange Bearing Unit UCFL204-12

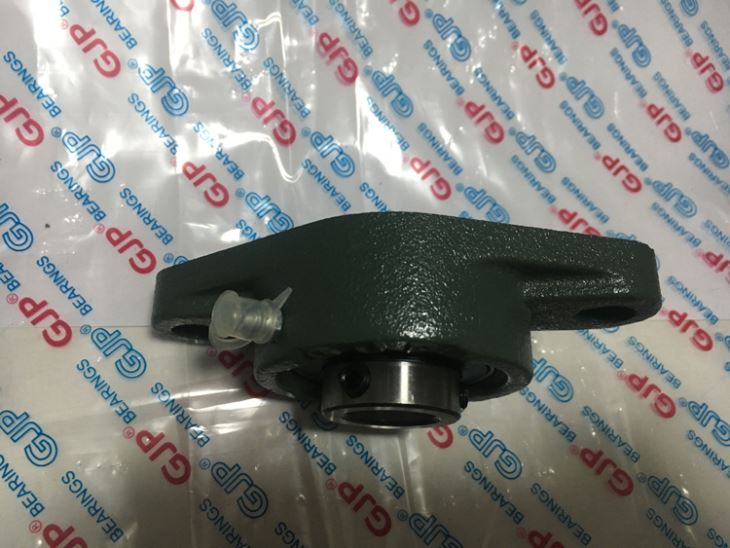

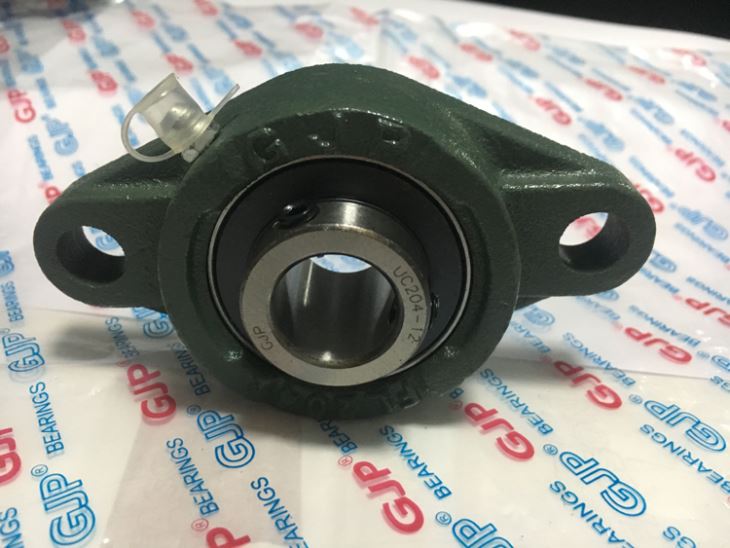

GJP 3/4″ 2 Bolt Flange Bearing Unit UCFL204-12, it has the features of two bolt, flanged mounted bearing units, cast iron material housing, set screw type, they are designed by GJP to allow for the static mis-alignment of the bearing inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing. UCFL204-12 bearing is a component that fixes and reduces the load friction coefficient in the process of mechanical transmission. It can also be said that when other parts move relative to each other on the shaft, UCFL204-12 is used to reduce the friction coefficient in the process of power transmission and keep the center of the shaft fixed. UCFL204-12 bearing is an important component in contemporary mechanical equipment. Its main function is to support the mechanical rotating body to reduce the friction coefficient of the mechanical load during the transmission process of the equipment.

SKU f0d7fa10d43f Category Tag
Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-3/4 inch bore 2 bolt flange bearing UCFL204-12

GJP Bar Code Number: 6935329800762

GJP China 2 Bolt Flange Bearing Unit UCFL204-12, it has the features of two bolt, flanged mounted bearing units, cast iron material housing, set screw type, they are designed by GJP to allow for the static mis-alignment of the bearing inside the housing because of the spherical shape of the outer diameter of the bearing insert and the concave shape of the inner diameter of the housing. This design allows the bearing unit to adjust for initial shaft mis-alignment which helps reduce abnormal bearing load. The allowable aligning angle of standard ball bearing units is 3º, while units with covers is 1º. Note, this 2 bolt flange bearing is not designed to swivel dynamically.

Features of 2 bolt flange bearings

The 2 bolt flange bearing is a motion system that does not require the use of a bearing base. It is very light in weight and low in cost, so it is very popular in applications. And the 2 bolt flange bearing also uses a small steel ball, which not only makes the rotation precision more precise, but also obtains the low-friction torque of the bearing, which is very convenient to apply.

When an ordinary bearing is used, its two ends need to be connected, but a 2 bolt flange bearing can have no connector at one end. This is the unique advantage of flange bearings, which also expands the scope of use of the bearing.

No need for a bearing housing, it becomes more economical. In order to obtain low friction torque, high rigidity and good rotation accuracy of the bearing, steel balls with small outer diameters are used. The use of hollow shafts ensures light weight and spatial characteristics of wiring. The biggest feature is the integration of flanges and bearings. When there is no joint at one end of the shaft and it needs to be fixed on a flat surface such as a plate or a wall, the 2 bolt flange bearing shows its advantages.

Interchange

GJP: UCFL204-12

AMI: UCFT204-12

Asahi: UCFT204-12

Browning: VF2S-212

Dodge: 124170

FYH: UCFT204-12

IPTCI: U UCFT204-12

Link-Belt: FX3-U212N

NTN: UCFL204-012D1

Peer: UCFT204-12

Sealmaster: SFT12

3/4” 2 Bolt Flange Bearing Unit UCFL204-12



Basic Dimensions
Bore Size Center Shaft to Base Size Housing Length Center Bolt to Bolt Size Housing Width Housing Height Bolt Size
3/4″ 15 113 90 60 33.3 3/8″

Technical Data for GJP China 2 bolt flange bearing UCFL204-12

Type: 2 Bolt Flange Bearing

Housing No.: FL204

Bearing Insert No.: UC204-12

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 0.28KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

Basic Loading(Cr): 12.8KN

Basic Loading(Cor): 6.65KN

3/4” 2 Bolt Flange Bearing Unit UCFL204-12

3/4” 2 Bolt Flange Bearing Unit UCFL204-12

GJP could also produce the belowing UCFL type 2 Bolt Flange Bearing Housing:

GJP Unit No Shaft Dia Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg)
d H L L A2 A1 A E N S A4
(in.) (mm)
UCFL201 12 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201 FL203 0.45
UCFL201-8 1/2 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201-8 FL203 0.45
UCFL202 15 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC202 FL203 0.45
UCFL202-10 5/8 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC202-10 FL203 0.45
UCFL203 17 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC203 FL203 0.45
UCFL203-11 11/16 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC203-11 FL204 0.51
UCFL204-12 3/4 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204-12 FL204 0.51
UCFL204 20 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204 FL204 0.51
UCFL205-14 7/8 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-14 FL205 0.6
UCFL205-15 15/16 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-15 FL205 0.6
UCFL205 25 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205 FL205 0.6
UCFL205-16 1 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-16 FL205 0.6
UCFL206-18 1 1/8 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-18 FL206 0.9
UCFL206 30 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206 FL206 0.9
UCFL206-19 1 3/16 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-19 FL206 0.9
UCFL206-20 1 1/4 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-20 FL206 0.9
UCFL207-20 1 1/4 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-20 FL207 1.2
UCFL207-21 1 5/16 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-21 FL207 1.2
UCFL207-22 1 3/8 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-22 FL207 1.2
UCFL207 35 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207 FL207 1.2
UCFL207-23 1 7/16 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-23 FL207 1.2
UCFL208-24 1 1/2 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-24 FL208 1.5
UCFL208-25 1 9/16 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-25 FL208 1.5
UCFL208 40 175 144 100 21 14 36 51.2 14 19 55 M12 UC08 FL208 1.5
UCFL209-26 1 5/8 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-26 FL209 1.9
UCFL209-27 1 11/16 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-27 FL209 1.9
UCFL209-28 1 3/4 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-28 FL209 1.9
UCFL209 45 188 148 108 22 16 38 52.2 18 19 57 M16 UC209 FL209 1.9
UCFL210-30 1 7/8 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-30 FL210 2.2
UCFL210-31 1 15/16 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-31 FL210 2.2
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2
UCFL210-32 2 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-32 FL210 2.2
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1
UCFL211-32 2 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-32 FL211 3.1
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M60 UC211-34 FL211 3.1
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1
UCFL211 55 224 184 130 25 18 48 58.4 18 22.26 64 M16 UC211 FL211 3.1
UCFL211-35 2 3/16 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-35 FL211 3.1
UCFL212-36 2 1/4 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-36 FL212 4
UCFL212 60 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212 FL212 4
UCFL212-38 2 3/8 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-38 FL212 4
UCFL212-39 2 7/16 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-39 FL212 4
UCFL213-40 2 1/2 258 210 155 30 20 50 69.7 23 25.4 79 M20 UC213-40 FL213 5



Unit No Shaft Dia. Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg)
d H J L A2 A1 A E N S F
(in.) (mm)
HCFL201 12 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 HC201 FL203 0.48
HCFL201-8 1/2 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 HC201-8 FL203 0.48
HCFL203 17 99 76.5 57 15 11 24.5 38.4 11.5 13.9 M10 HC203 FL203 0.48
HCFL203-11 11/16 99 76.5 57 15 11 34.5 38.4 11.5 13.9 M10 HC203-11 FL203 0.48
HCFL204-12 3/4 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 HC204-12 FL204 0.7
HCFL204 20 113 90 60 15 11 25.5 41.5 11.5 17 31 M10 HC204 FL204 0.7
HCFL205-14 7/8 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 HC205-14 FL205 0.8
HCFL205-15 15/16 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 HC205-25 FL205 0.8
HCFL205 25 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 HC205 FL205 0.8
HCFL205-16 1 130 99 68 16 13 27 42.9 11.5 17.4 36 M10 HC205-16 FL206 0.8
HCFL206-18 1 1/8 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 HC206-18 FL206 1.2
HCFL206 30 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 HC206 FL206 1.2
HCFL206-19 1 3/16 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 HC206-19 FL206 1.2
HCFL206-20 1 1/4 148 117 80 18 13 31 48.1 11.5 18.2 42 M10 HC206-20 FL206 1.2
HCFL207-20 1 1/4 161 130 90 19 14 34 51.3 14 18.8 50 M12 NF207-20 FL207 1.6
HCFL207-21 1 5/16 161 130 90 19 14 34 51.3 14 18.8 50 M12 HC207-21 FL207 1.6
HCFL207-22 1 3/8 161 130 90 19 14 34 51.3 14 18.8 50 M12 HC207-22 FL207 1.6
HCFL207 35 161 130 90 19 14 34 51.3 14 18.8 50 M12 HC207 FL207 1.6
HCFL207-23 1 7/16 161 130 90 19 14 34 51.3 14 18.8 50 M12 HC207-23 FL207 1.6
HCFL208-24 1 1/2 175 144 100 21 14 36 55.9 14 21.4 55 M12 HC208-24 FL208 1.9
HCFL208-25 1 9/16 175 144 100 21 14 36 55.9 14 21.4 55 M12 HC208-25 FL208 1.9
HCFL208 40 175 144 100 21 14 36 55.9 14 21.4 55 M12 HC208 FL208 1.9
HCFL209-26 1 5/8 188 148 108 22 16 38 56.9 18 21.4 M16 HC209-26 FL209 2.3
HCFL209-27 1 11/16 188 148 108 22 16 38 56.9 18 21.4 M16 HC209-27 FL209 2.3
HCFL209-28 1 3/4 188 148 108 22 16 38 56.9 18 21.4 M16 HC209-28 FL209 2.3
HCFL209 45 188 148 108 22 16 38 56.9 18 21.4 M16 HC209 FL209 2.3
HCFL210-30 1 7/8 197 157 115 22 16 40 60.1 18 24.6 64 M16 HC210-30 FL210 2.6
HCFL210-31 1 15/16 197 157 115 22 16 40 60.1 18 24.6 64 M16 HC210-31 FL210 2.6
HCFL210 50 197 157 115 22 16 40 60.1 18 24.6 64 M16 HC210 FL210 2.6
HCFL211-32 2 224 184 130 25 18 43 68.6 18 27.7 71 M16 HC211-32 FL211 3.8
HCFL211-34 2 1/8 224 184 130 25 18 43 68.6 18 27.7 71 M16 HC211-34 FL211 3.8
HCFL211 55 224 184 130 25 18 43 68.6 18 27.7 71 M16 HC211 FL211 3.8
HCFL211-35 2 3/16 224 184 130 25 18 43 68.6 18 27.7 71 M16 HC211-35 FL211 3.8
HCFL212-36 2 1/4 250 202 140 29 18 48 75.8 18 30.9 77 M16 HC212-36 FL212 4.8
HCFL212 60 250 202 140 29 18 48 75.8 18 30.9 77 M16 HC212 FL212 4.8
HCFL212-38 2 3/8 250 202 140 29 18 48 75.8 18 30.9 77 M16 HC212-38 FL212 4.8
HCFL212-39 2 7/16 250 202 140 29 18 48 75.8 18 30.9 77 M16 HC212-39 FL212 4.8
HCFL213-40 2 1/2 258 210 155 30 20 50 81.6 23 34.1 84 M20 HC213-40 FL213 6
HCFL213 65 258 210 155 30 20 50 81.6 23 34.1 84 M20 HC213 FL213 6
HCFL214-44 2 3/4 265 216 160 31 20 54 82.6 23 34.1 89 M20 HC214-44 FL214 6.3
HCFL214 70 265 216 160 31 20 54 82.6 23 34.1 89 M20 HC214 FL214 6.3
HCFL215 75 275 225 164 34 22 55 88.8 23 37.3 94 M20 HC215 FL215 7.2
HCFL215-48 3 275 225 164 34 22 55 88.8 23 37.3 94 M20 HC215 FL215 7.2
HCFL216 80 290 233 180 34 22 58 91.5 25 37.3 101 M22 HC216 FL216 7.37



GJP Unit No. Shaft No. Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg)
d H J L A1 A A2 N S E
(in.) (mm)
SALF201 12 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA201G LF203 0.3
SALF201-8 1/2 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA201-8G LF203 0.3
SALF202 15 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA202G LF203 0.29
SALF202-10 5/8 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA202-10G LF203 0.29
SALF203 17 81 63.5 56 9.5 18 9.5 8 6.5 31.6 M6 SA203G LF203 0.28
SALF203-11 11/16 81 63.5 56 9.5 18 9.5 8 6.5 31.6 1/4 SA230-11G LF203 0.28
SALF204-12 3/4 90 71.5 61 11 20 11 10 7.5 34.4 5/16 SA204-12G LF204 0.33
SALF204 20 90 71.5 61 11 20 11 10 7.5 34.4 M8 SA204G LF204 0.33
SALF205-14 7/8 95 76 64 11 20 11 10 7.5 34.4 5/16 SA205-14G LF205 0.42
SALF205-15 15/16 95 76 64 11 20 11 10 7.5 34.4 5/*16 SA205-15G LF205 0.42
SALF205 25 95 76 64 11 20 11 10 7.5 34.4 M8 SA205G LF205 0.42
SALF205-16 1 95 76 64 11 20 11 10 7.5 34.4 5/16 SA205-16G LF205 0.42
SALF206-18 1 1/8 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-18G LF206 0.6
SALF206 30 113 90.5 76 12 22.5 12 12 9 38.7 M10 SA206G LF206 0.6
SALF206-19 1 3/16 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-19G LF206 0.6
SALF206-20 1 1/4 113 90.5 76 12 22.5 12 12 9 38.7 3/8 SA206-20G LF206 0.6
SALF207-20 1 1/4 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-20G LF207 0.85
SALF207-21 1 5/16 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-21G LF207 0.85
SALF207-22 1 3/8 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-22G LF207 0.85
SALF207 35 122 100 89 13 24 13 12 9.5 42.4 M10 SA207G LF207 0.85
SALF207-23 1 7/16 122 100 89 13 24 13 12 9.5 42.4 3/8 SA207-23G LF207 0.85
GJP Unit No Shaft Dia Diemensions(mm) Bolt Size Bearing No. Housing No. Mass(kg)
d H J L A1 A A2 N
