3 1/4” Pillow Block Bearing UCP217-52 for Corrugated Pipe forming Equipment

Description-3 1/4”Bore Pillow Block Bearing UCP217-52

GJP Bar Code Number: 6935329802490

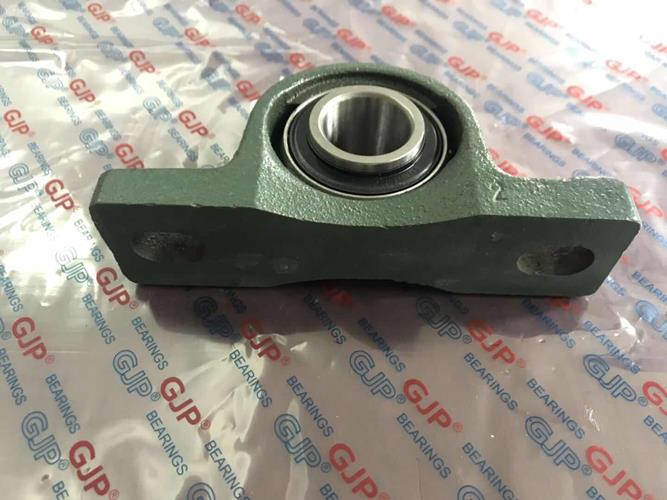

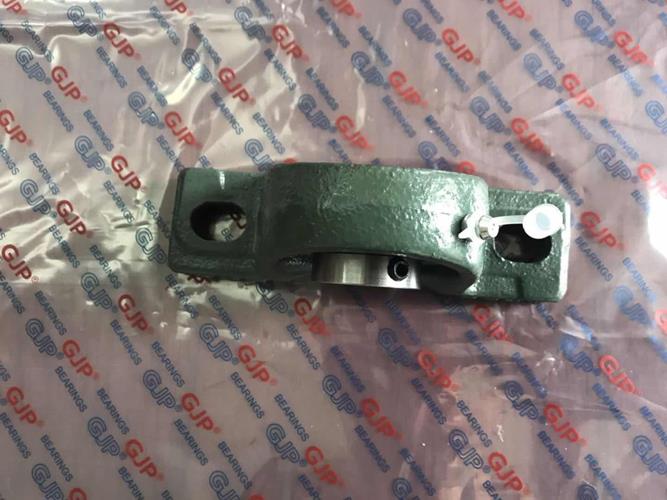

GJP 3 1/4″ Pillow Block Bearing UCP217-52 For Corrugated Pipe Forming Equipment, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

A pillow block bearing is a combination of a radial bearing and a seat. There is a base plate for mounting screws on the support surface parallel to the bearing axis. GJP is a professional pillow block bearing company, we have many years of export experience and are one of the experts in this industry. If you are interested in our products, please contact us as soon as possible.

Interchange

GJP: UCP217-52

AMI: UCP217-52

IPTCI: UCP217-52

NSK: UCP217-52

Peer: FHSP217-52G

Fafnir: RASC-3 1/4″

Fafnir: YAS-3 1/4″

RHP: NP-3 1/4″

SKF: SY 3 1/4″ TF

Technical Data for GJP UCP217-52

Housing No.: P217

Bearing Insert No.: UC217-52

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 6.9KGS

Quality Control: Under ISO: 9001: 2008 Certificate

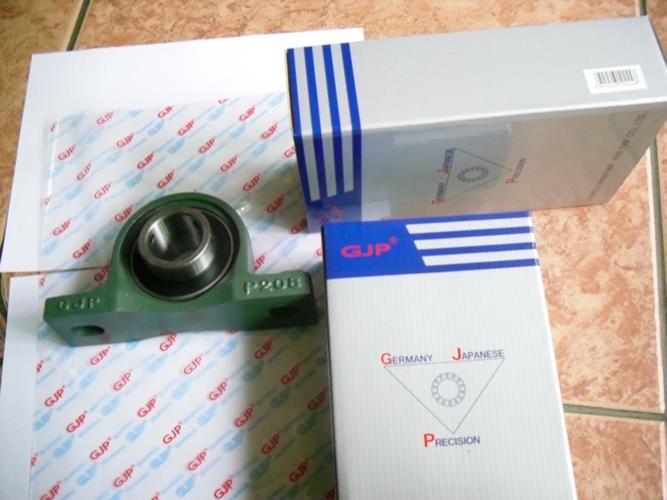

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

FAQ

For the Pillow Block Housing, what sizes do you put the grease nipple? And how about the set screw sizes

In GJP factory, the standard size from 201 to 207, we normally use the grease nipple size with 1/4-28UNF, for the size which is bigger than 207, we normally use 1/8-27NPT, but we have some customers that they specially need they use bigger nipple size also for small size, which they all requires 1/8-27NPT, customers need to inform us in advance in their PO, for the set screw, we on the bearing inserts, we use the metric size set screw for the metric series products, and instead we use inch type set screw for the inch type bearing units, so that customers could easily use the allen key for operating the according set screw.
