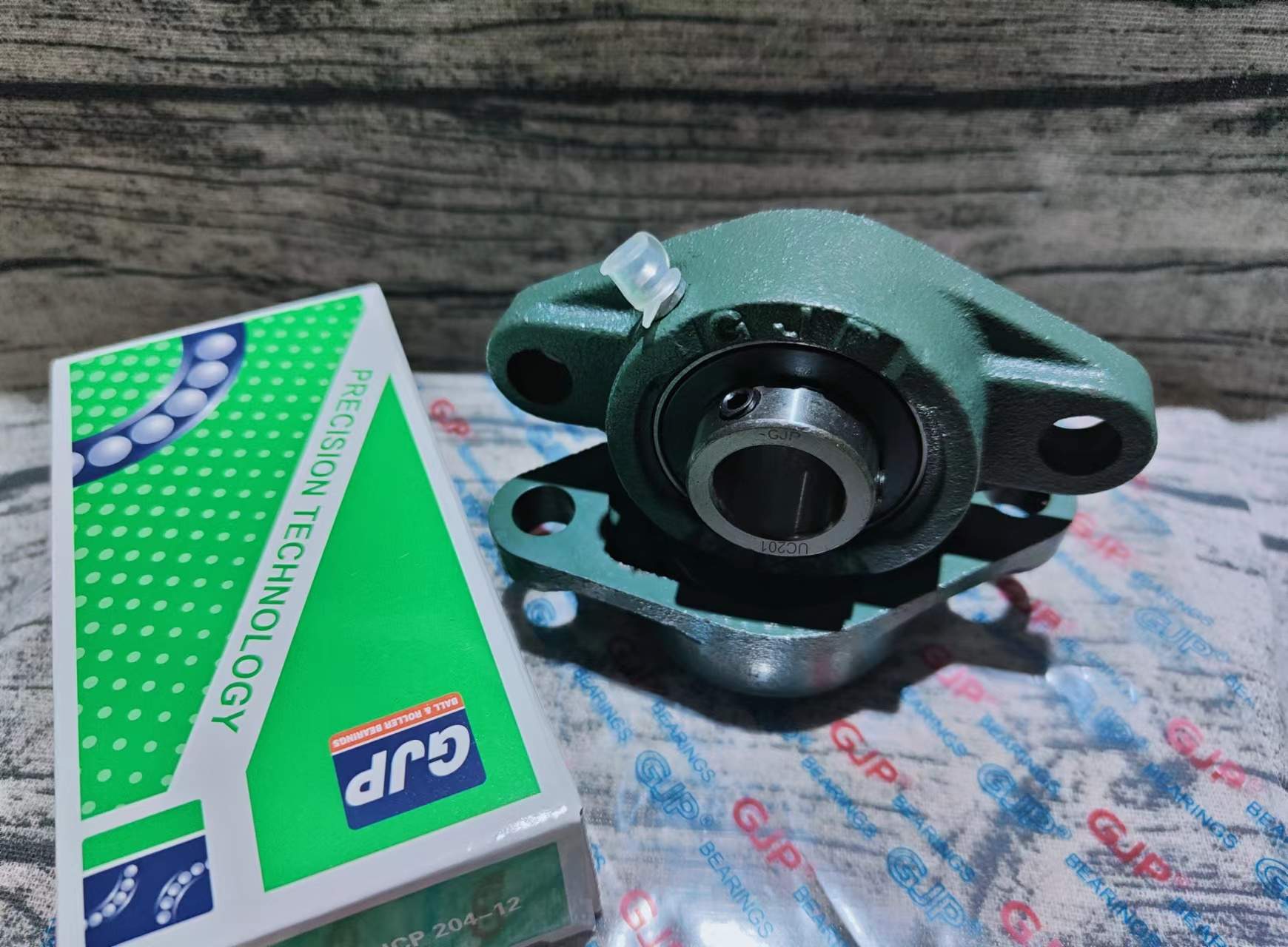

2 hole flange bearing UCFL201

2 hole flange bearing UCFL201

2 hole flange bearing UCFL201 has a wide range of applications. UCFL201 is mainly used in construction machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, railway and other industries. services and do everything to meet customer needs.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-2 hole flange bearing UCFL201

2 hole flange bearing UCFL201 consists of a ball or roller bearing mounted in a double-bolt bearing housing, the bearing can be used in: screening equipment, enamel reactors, excavators, electrostatic sprayers, ironing machines, binding machines, explosion-proof pumps, bag making machine, injection molding machine accessories, pharmaceutical packaging machinery, weaving machinery, film blowing machine, plant protection machinery, boring machine, wire peeling machine, roller scraper dryer, tower crane, chiller, etc.

Since the bearing unit consists of a ball or roller bearing mounted in a 2-bolt housing, it combines application handling with ease of use in applications requiring flanged bearings. 2 hole flange bearing UCFL201 has a wide range of applications. UCFL201 is mainly used in construction machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, railway and other industries. services and do everything to meet customer needs.

Features of 2 hole flange bearing

GJP specializes in the production and sales of 2 hole flange bearing UCFL201. The related information of UCFL201 includes: Model UCFL201,

inner diameter: 12mm
Outer diameter: 31mm
Thickness: 62mm
Brand: GJP
Type: Outer spherical bearing
2 hole flange bearing UCFL201 has a wide range of applications. UCFL201 is mainly used in transmission devices, construction machinery, vibrating screens, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electric power, motors, fans, railways and other industries. The UCFL201 produced by our company is reasonably priced and guaranteed. Quality, all-round service, do everything to meet customer needs.

Interchange

GJP: UCFL204-12

AMI: UCFT204-12

Asahi: UCFT204-12

Browning: VF2S-212

Dodge: 124170

FYH: UCFT204-12

IPTCI: U UCFT204-12

Link-Belt: FX3-U212N

NTN: UCFL204-012D1

Peer: UCFT204-12

Sealmaster: SFT12

UCFL201 2 hole flange bearing

2 hole flange bearing

2 hole flange bearing UCFL201

GJP could also produce the belowing UCFL type 2 bolt flange bearing housing:

GJP Unit No Shaft Dia Dimensions(mm) Bolt Size Bearing No. Housing No. Mass(kg)
d H L L A2 A1 A E N S A4
(in.) (mm)
UCFL201 12 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201 FL203 0.45
UCFL201-8 1/2 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC201-8 FL203 0.45
UCFL202 15 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC202 FL203 0.45
UCFL202-10 5/8 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC202-10 FL203 0.45
UCFL203 17 99 76.5 57 15 11 24.5 30.9 11.5 11.5 M10 UC203 FL203 0.45
UCFL203-11 11/16 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC203-11 FL204 0.51
UCFL204-12 3/4 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204-12 FL204 0.51
UCFL204 20 113 90 60 15 11 25.5 33.3 11.5 12.7 37.5 M10 UC204 FL204 0.51
UCFL205-14 7/8 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-14 FL205 0.6
UCFL205-15 15/16 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-15 FL205 0.6
UCFL205 25 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205 FL205 0.6
UCFL205-16 1 130 99 68 16 13 27 35.7 11.5 14.3 40 M10 UC205-16 FL205 0.6
UCFL206-18 1 1/8 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-18 FL206 0.9
UCFL206 30 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206 FL206 0.9
UCFL206-19 1 3/16 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-19 FL206 0.9
UCFL206-20 1 1/4 148 117 80 18 13 31 40.2 11.5 15.9 44 M10 UC206-20 FL206 0.9
UCFL207-20 1 1/4 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-20 FL207 1.2
UCFL207-21 1 5/16 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-21 FL207 1.2
UCFL207-22 1 3/8 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-22 FL207 1.2
UCFL207 35 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207 FL207 1.2
UCFL207-23 1 7/16 161 130 90 19 14 34 44.4 14 17.5 48.5 M12 UC207-23 FL207 1.2
UCFL208-24 1 1/2 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-24 FL208 1.5
UCFL208-25 1 9/16 175 144 100 21 14 36 51.2 14 19 55 M12 UC208-25 FL208 1.5
UCFL208 40 175 144 100 21 14 36 51.2 14 19 55 M12 UC08 FL208 1.5
UCFL209-26 1 5/8 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-26 FL209 1.9
UCFL209-27 1 11/16 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-27 FL209 1.9
UCFL209-28 1 3/4 188 148 108 22 16 38 52.2 18 19 57 M16 UC209-28 FL209 1.9
UCFL209 45 188 148 108 22 16 38 52.2 18 19 57 M16 UC209 FL209 1.9
UCFL210-30 1 7/8 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-30 FL210 2.2
UCFL210-31 1 15/16 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-31 FL210 2.2
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2
UCFL210 50 197 157 115 22 16 40 54.6 18 19 60 M16 UC210 FL210 2.2
UCFL210-32 2 197 157 115 22 16 40 54.6 18 19 60 M16 UC210-32 FL210 2.2
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1
UCFL211-32 2 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-32 FL211 3.1
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M60 UC211-34 FL211 3.1
UCFL211-34 2 1/8 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-34 FL211 3.1
UCFL211 55 224 184 130 25 18 48 58.4 18 22.26 64 M16 UC211 FL211 3.1
UCFL211-35 2 3/16 224 184 130 25 18 48 58.4 18 22.2 64 M16 UC211-35 FL211 3.1
UCFL212-36 2 1/4 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-36 FL212 4
UCFL212 60 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212 FL212 4
UCFL212-38 2 3/8 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-38 FL212 4
UCFL212-39 2 7/16 250 202 140 29 18 48 68.7 18 25.4 74.5 M16 UC212-39 FL212 4
UCFL213-40 2 1/2 258 210 155 30 20 50 69.7 23 25.4 79 M20 UC213-40 FL213 5
