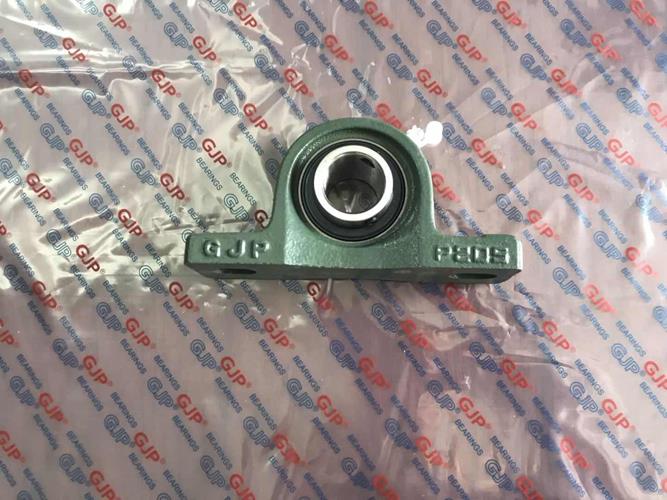

2” Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System

2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System

GJP 2″ Heavy Duty Pillow Block Bearing HCP211-32 For HVAC system, it is used when the shaft axis is perpendicular or parallel to the bearing mounting surface. They incorporate a sealed bearing that is preassembled into a P series solid base housing, The housing is available in cast iron, pressed steel, stainless steel and thermoplastic.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-2 Inch Bore Heavy Duty Pillow Block Bearing For Hvac System HCP211-32

GJP Bar Code Number: 6935329802834

GJP 2″ Heavy Duty Pillow Block Bearing For HVAC system HCP211-32 , it is used when the shaft axis is perpendicular or parallel to the bearing mounting surface. They incorporate a sealed bearing that is preassembled into a P series solid base housing, The housing is available in cast iron, pressed steel, stainless steel and thermoplastic. It contains a precision ground surface perpendicular or parallel to the bearing axis and two mounting holes, The bearing can be unbolted and removed,and with the eccentric locking collar, which makes bearing replacement easier and faster than traditional rotary bearings that must be press fit into a housing, GJP HCP series Pillow Block Bearing can also support heavy loads, which protects the shaft from deflection, which could cause vibration or other damage.

HCP211-32 has the wide application include: Agriculture, Automotive, Construction, Pump, Manufacturing Equipment, Sporting and Consumer Goods, Conveyor and Fan Assemblies, Farm Machinery, HVAC, Feed Mill, Economical housed bearing solution and many other Industrial Equipment.



How to distinguish heavy and light pillow block bearing

In fact, these differences are very obvious. The first is the difference in quality, which is mainly caused by two differences. The first difference is the material. In many cases, the material of a light duty bearing is different from that of a heavy duty pillow block bearing. In order to use different industrial production or processing needs, bearings must have different properties. The material of various bearings is different, in fact, it is for this reason.

Another point is the difference in physical structure, which can be seen intuitively. The structure of different bearings is generally different. This is not only to guide the coordination between the rigidity and the supporting shaft, but also to ensure that users can better meet their own needs during use. Some large bearings need to be used in some high-pressure applications, so a lot of anti-compression measures are added, resulting in this kind of bearing being different from ordinary bearings in physical structure.

If you want to buy heavy duty pillow block bearing for hvac system please contact us.



Interchange

GJP: HCP211-32

AMI: UGP211-32

FYH: NAP211-32

IPTCI: NAP211-32

NSK: HCP211-32

Peer: HCP211-32

NTN: UELP222-200D1

Browning: VPE-232

Dodge: P2B-SXR-200L

Fafnir: RAS 2

Link Belt: P3-Y232N

Seal Master: RP-32E

Turner: HCP211-32

SKF: SY 2 WF

2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System

Basic Dimensions
Bore Size Center Shaft to Base Size Housing Length Center Bolt to Bolt Size Housing Width Housing Bolt Length Housing Bolt Width Housing Height Bolt Size
1 11/16 63.5MM 219MM 171MM 60MM 25MM 20MM 126MM 5/8″



Technical Data for GJP HCP211-32

Type: Pillow Block Mounted Unit With Eccentric Locking Collar

Housing No.: P211

Bearing Insert No.: HC211-32

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Eccentric Locking Collar Material: #45 Carbon Steel

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 6.6KGS

Quality Control: Under ISO: 9001: 2008 Certificate

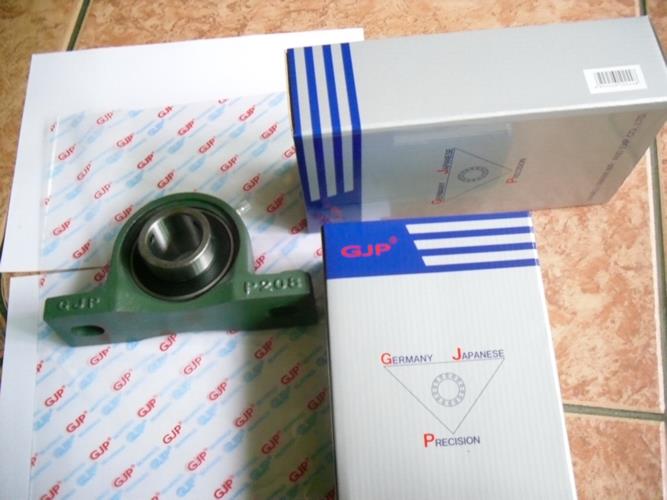

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

Basic Loading(Cr): 9780LB

Basic Loading(Cor): 6560LB

2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System

2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System 2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System 2'' Heavy Duty Pillow Block Bearing HCP211-32 for HVAC System

GJP produce for customers the belowing light duty type Bearing unit also:

GJP Unit No. Shaft Dia (d) Dimensions(mm) Bolt Size Bearing No. Housing No.
(in) (mm) h a e b s2 s1 g w n Bi
SBLP201-08 1/2 30.2 114 87 25.4 16 11 12 57 6 22 3/8 SB201-08 LP203
SBLP201 12 30.2 114 87 25.4 16 11 12 57 6 22 3/8 SB201 LP203
SBLP202-10 5/8 30.2 114 87 25.4 16 11 12 57 6 22 3/8 SB202-10 LP203
SBLP202 15 30.2 114 87 25.4 16 11 12 57 6 22 3/8 SB202 LP203
SBLP203 17 30.2 114 87 25.4 16 11 12 57 6 22 3/8 SB203 LP203
SBLP204-12 3/4 33.3 125 97 27 16 11 13 65 7 25 3/8 SB204-12 LP204
SBLP204 20 33.3 125 97 27 16 11 13 65 7 25 3/8 SB204 LP204
SBLP205-14 7/8 36.5 130 100 29 16 11 13 71 7.5 27 3/8 SB205-14 LP205
SBLP205-15 15/16 36.5 130 100 29 16 11 13 71 7.5 27 3/8 SB205-15 LP205
SBLP205-16 1 36.5 130 100 29 16 11 13 71 7.5 27 3/8 SB205-16 LP205
SBLP205 25 36.5 130 100 29 16 11 13 71 7.5 27 3/8 SB205 LP205
SBLP206-17 1 1/16 42.9 156 120 33 21 14 14 83 8 30 1/2 SB206-17 LP206
SBLP206-18 1 1/8 42.9 156 120 33 21 14 14 83 8 30 1/2 SB206-18 LP206
SBLP206-19 1 3/16 42.9 156 120 33 21 14 14 83 8 30 1/2 SB206-19 LP206
SBLP206-20 1 1/4 42.9 156 120 33 21 14 14 83 8 30 1/2 SB206-20 LP206
SBLP206 30 42.9 156 120 33 21 14 14 83 8 30 1/2 SB206 LP206
SBLP207-20 1 1/4 47.6 165 127 35 21 14 16 93 8.5 32 1/2 SB207-20 LP207
SBLP207-21 1 5/16 47.6 165 127 35 21 14 16 93 8.5 32 1/2 SB207-21 LP207
SBLP207-22 1 3/8 47.6 165 127 35 21 14 16 93 8.5 32 1/2 SB207-22 LP207
SBLP207-23 1 7/16 47.6 165 127 35 21 14 16 93 8.5 32 1/2 SB207-23 LP207
SBLP207 35 47.6 165 127 35 21 14 16 93 8.5 32 1/2 SB207 LP207
GJP Unit No. Shaft Dia (d) Dimensions(mm) Bolt Size Bearing No. Housing No.
(in) (mm) h a e b s2 s1 g w n Bi K
SALP201-08 1/2 30.2 114 87 25.4 16 11 12 57 6 28.6 33.3 3/8 SA201-08 LP203
SALP201 12 30.2 114 87 25.4 16 11 12 57 6 28.6 33.3 3/8 SA201 LP203
SALP202-10 5/8 30.2 114 87 25.4 16 11 12 57 6 28.6 33.3 3/8 SA202-10 LP203
SALP202 15 30.2 114 87 25.4 16 11 12 57 6 28.6 33.3 3/8 SA202 LP203
SALP203 17 30.2 114 87 25.4 16 11 12 57 6 28.6 33.3 3/8 SA203 LP203
SALP204-12 3/4 33.3 125 97 27 16 11 13 65 7 31 33.3 3/8 SA204-12 LP204
SALP204 20 33.3 125 97 27 16 11 13 65 7 31 33.3 3/8 SA204 LP204
SALP205-14 7/8 36.5 130 100 29 16 11 13 71 7.5 31.5 38.1 3/8 SA205-14 LP205
SALP205-15 15/16 36.5 130 100 29 16 11 13 71 7.5 31.5 38.1 3/8 SA205-15 LP205
SALP205-16 1 36.5 130 100 29 16 11 13 71 7.5 31.5 38.1 3/8 SA205-16 LP205
SALP205 25 36.5 130 100 29 16 11 13 71 7.5 31.5 38.1 3/8 SA205 LP205
SALP206-17 1 1/16 42.9 156 120 33 21 14 14 83 8 35.7 44.5 1/2 SA206-17 LP206
SALP206-18 1 1/8 42.9 156 120 33 21 14 14 83 8 35.7 44.5 1/2 SA206-18 LP206
SALP206-19 1 3/16 42.9 156 120 33 21 14 14 83 8 35.7 44.5 1/2 SA206-19 LP206
SALP206-20 1 1/4 42.9 156 120 33 21 14 14 83 8 35.7 44.5 1/2 SA206-20 LP206
SALP206 30 42.9 156 120 33 21 14 14 83 8 35.7 44.5 1/2 SA206 LP206
SALP207-20 1 1/4 47.6 165 127 35 21 14 16 93 8.5 38.9 55.6 1/2 SA207-20 LP207
SALP207-21 1 5/16 47.6 165 127 35 21 14 16 93 8.5 38.9 55.6 1/2 SA207-21 LP207
SALP207-22 1 3/8 47.6 165 127 35 21 14 16 93 8.5 38.9 55.6 1/2 SA207-22 LP207
SALP207-23 1 7/16 47.6 165 127 35 21 14 16 93 8.5 38.9 55.6 1/2 SA207-23 LP207
SALP207 35 47.6 165 127 35 21 14 16 93 8.5 38.9 55.6 1/2 SA207 LP207
