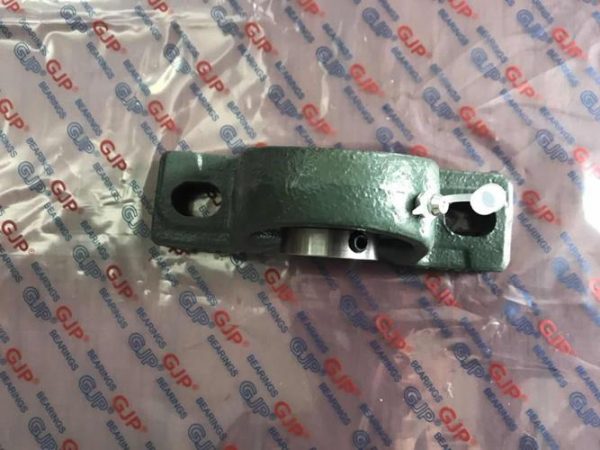

2 7/8” Pillow Block Bearing UCP215-46 for Punching Machine

2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine

GJP 2 7/8″ Pillow Block Bearing UCP215-46 For Punching Machine, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-2 7/8”Bore Pillow Block Bearing for Punching Machine UCP215-46

GJP Bar Code Number: 6935329802438

GJP 2 7/8″ Pillow Block Bearing For Punching Machine UCP215-46, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

GJP specializes in producing bearing for punching machine, meanwhile we also sell pillow block bearing for fabric inspection machine, pillow block bearing for compressors, pillow block bearing for thread rolling machine and so on. If you are interested in our products, please contact us.



Interchange

GJP: UCP215-46

AMI: UCP215-46

IPTCI: UCP215-46

NSK: UCP215-46

Peer: FHSP215-46G

Fafnir: RASC-2 7/8″

Fafnir: YAS-2 7/8″

RHP: NP-2 7/8″

SKF: SY 2 7/8″ TF



2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

2 7/8″

82.6MM

275MM

217MM

74MM

31MM

25MM

163MM

3/4″



Technical Data for GJP UCP215-45

Housing No.: P215

Bearing Insert No.: UC215-46

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 4.9KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton



2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine

2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine

2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine

2 7/8'' Pillow Block Bearing UCP215-46 for Punching Machine



GJP advantage:

  1. Promote with better life-duration
  2. Better and beautiful GJP poly bag and color box design.
  3. Low noise and rotation function on bearing working.
  4. Anti-rusty oil cleaning before bearing insert was assembled into housing.
  5. 100% HT200 material for ensuring the hardness and strength requirements.



FAQ

We’re bearing dealers in USA, could you export tapered roller bearings to USA?

For Tapered Roller Bearing, there is a anti-dumpling fee which USA customs charged on Chinese products, also for the wheel hub bearing with tapered roller design, there is anti-dumpling fee also, we could not export to USA without being charging this additional duty, as we don’t produce these type of bearings, normally customers from USA need the tapered Roller bearings from us, we would introduce them to the factory who could exempt the tax, these type of factories used to suits the law when USA wanna to take the dumpling fee, and they were evidented that their factory’s prices are reasonable and could enjoy the normal tariff when export to USA.
