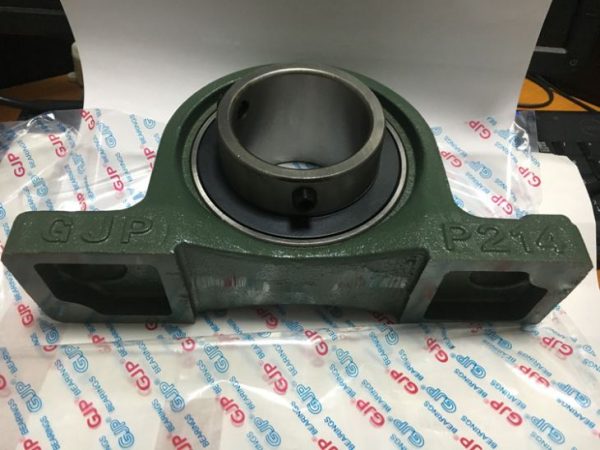

2 5/8” Pillow Block Bearing UCP214-42 for Multistage Pump

Description-2 5/8”Bore Pillow Block Bearing for Multistage Pump UCP214-42

GJP Bar Code Number: 6935329802384

GJP 2 5/8″ pillow block bearing for multistage pump UCP214-42, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

The inner bearing of the multistage pump is a single row radial ball bearing. The single-row radial ball bearing has a simple structure and is easy to use. It is characterized by low frictional resistance, high rotational speed, and can withstand radial loads. However, when the radial clearance of the bearing is increased, it has certain angular contact ball bearing performance and can bear combined radial and axial loads. It can also be used to bear pure axial load when the rotational speed is high and the thrust ball bearing is not suitable.

GJP specializes in selling pillow block bearing for multistage pump, if you are interested in our products, please contact us.

Interchange

GJP: UCP214-42

AMI: UCP214-42

IPTCI: UCP214-42

NSK: UCP214-42

Peer: FHSP214-42G

Fafnir: RASC-2 5/8″

Fafnir: YAS-2 5/8″

RHP: NP-2 5/8″

SKF: SY 2 5/8″ TF

Technical Data for GJP UCP214-42

Housing No.: P214

Bearing Insert No.: UC214-42

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 4.45KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton
