GJP 2 13/16″ Pillow Block Bearing UCP215-45 For Loader, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.
GJP Bar Code Number: 6935329802421
GJP 2 13/16″ Pillow Block Bearing For Loader UCP215-45, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.
1. Cleaning of seated bearings
When removing the bearing for inspection, first take pictures and other methods to make a record of the appearance. Also, acknowledge the amount of remaining lubricant and sample the lubricant before cleaning the bearing.
2. Check the bearing with seat
In order to distinguish whether the removed bearing can be used again, it is necessary to focus on checking its standard accuracy, rotation accuracy, internal clearance, and cooperation surfaces, raceway surfaces, cages and sealing rings. Regarding the inspection effect, it can be distinguished by those who use inertia bearings or those who know bearings. The other criteria for judgment vary according to the function and importance of the machine, as well as the inspection cycle. If the following damage occurs, the bearing shall not be re-used and must be replaced.
The pillow block bearing for loader is a high-precision component product composed of a grease-sealed deep groove ball bearing and a bearing seat of various shapes. The bearing assembly can be directly installed on the main body of the loader through several bolts, has the self-aligning function, and can supplement the grease, etc. It is a product that is very easy to install and use.
GJP: UCP215-45
AMI: UCP215-45
IPTCI: UCP215-45
NSK: UCP215-45
Peer: FHSP215-45G
Fafnir: RASC-2 13/16″
Fafnir: YAS-2 13/16″
RHP: NP-2 13/16″
SKF: SY 2 13/16″ TF
Basic Dimensions |
||||||||
Bore Size |
Center Shaft to Base Size |
Housing Length |
Center Bolt to Bolt Size |
Housing Width |
Housing Bolt Length |
Housing Bolt Width |
Housing Height |
Bolt Size |
2 13/16″ |
82.6MM |
275MM |
217MM |
74MM |
31MM |
25MM |
163MM |
3/4″ |
Housing No.: P215
Bearing Insert No.: UC215-45
Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)
Grade For Steel Ball: G10 Grade Chrome Steel Ball.
Materia of Bearing Cage: #10 Steel
Stopping Pin Material on OD of OR: Chrome Steel Gcr15
Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.
Set Screw Material: 35CrMo
Grease: 20% to 50% Mobil Grease
Set Screw Surrounding Hardness: HRC49 to HRC 50
Bearing Race and Steel Ball Hardness: HRC59 to HRC62
Bearing Housing Material: HT200 Grey Cast Iron
Housing Color: Green, Blue, Grey, Black Color available.
Whole Unit Assembly Type: J7 Tight Fitting
Housing Weight: 4.9KGS
Quality Control: Under ISO: 9001: 2008 Certificate

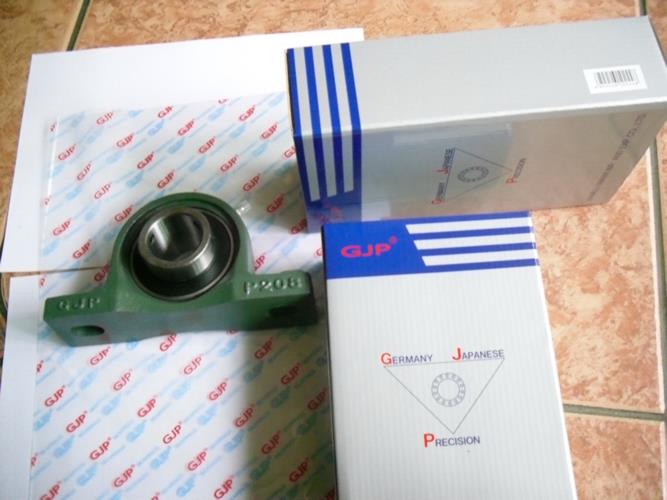

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton
What’s the detailed material for GJP housing, HT150 or HT180?
GJP uses all HT200 grey cast iron material to produce all of our bearing housing, which is better than the market and our material could reach the hardness of HB160—210 on the material surface, which is not so easy to be broken for the housing, and there is a strength and tension resistance capacity for our material, some people use only HT150 or HT180, which has lower hardness and lower strength capacity, and we have one customers from Japan who need us to do the chemical testing for our bearing housing, which they request to broken the cast iron and text the chemical strength and tension and other chemical composition, all of our material datas got customer’s final approval.
