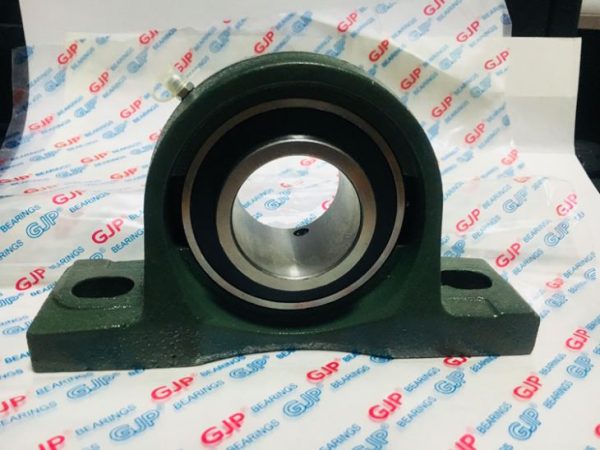

1 5/8” FYH Structure Pillow Block Bearing UCP209-26

1 5/8” FYH Structure Pillow Block Bearing UCP209-26

The GJP 1 5/8″ FYH Structure Pillow Block Bearing UCP209-26 is a high-quality bearing designed for use in various industrial applications. Its sturdy and durable structure makes it ideal for heavy-duty tasks, while its compact and lightweight design ensures ease of installation and maintenance.

Made from premium quality materials, this pillow block bearing is engineered to perform consistently and reliably in harsh working conditions. It boasts exceptional load-bearing capacity and can withstand high levels of stress and wear, making it an indispensable component of many industrial machines and equipment.

The UCP209-26 model from FYH is particularly popular among industries that require precision and efficiency. Its unique design allows for easy alignment and adjustment, ensuring optimal performance and longevity. It is also versatile and can be used in a wide range of industrial applications, including food processing, mining, automotive, and construction.

Product Details

Description-1 5/8”Bore FYH Structure Pillow Block Bearing Unit UCP209-26

GJP Bar Code Number: 6935329802216

GJP 1 5/8″ FYH Structure Pillow Block Bearing UCP209-26, which has grease fitting and cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

 Pillow Block Bearing UCP209-26 is a bearing device installed on machines or equipment to support and position shafts. It is a robust and easy-to-install bearing that has friction between the housing and internal rolling balls to help reduce friction and support the rotation of the shaft. In the naming of UCP209-26, UCP represents the pillow block bearing unit, 209 represents the bearing type and size, and 26 represents its shaft diameter size. It is commonly used in machines, equipment, transportation fields, and more.

Features of FYH structure pillow block bearing

  1. High load capacity and precision The internal structure of FYH structure pillow block bearing is the same as that of single row deep groove balls. While bearing a large radial load, it can bear axial loads in two directions.
  2. Reasonable self-aligning structure FYH structure pillow block bearing assemblies provide self-aligning performance through spherical outer diameter bearings and spherical inner bore housings. Therefore, it is possible to adjust the deviation of the shaft center due to the deflection of the shaft, eccentricity, etc., so that no abnormal load is applied to the bearing, thereby ensuring the original life of the bearing.
  3. High sealing performance The FYH structure pillow block bearing assembly, due to the multiplication effect of the sealing ring installed on the bearing outer ring and the oil slinger installed on the bearing inner ring, can preferentially place the lubricating oil inside the bearing to leak to the outside, and place the external lubricating oil to leak out. Dust, water, etc. penetrate into the inside of the bearing.
  4. Simple grease replenishment. A grease nipple is installed on the FYH structure pillow block bearing, so it is easy to add grease to the running bearing. When used in harsh environments such as dust, water, high humidity, and high temperature, regular replenishment of new grease can ensure that the bearing is in the best condition, thereby prolonging the life of the bearing.
  5. High rigidity, high strength bearing housing FYH structure pillow block bearing is optimally designed to reduce deformation caused by stress concentration and load, and select high-quality materials to produce through high-level casting technology and stamping technology. The high-rigidity and high-strength bearing seat prevents abnormal load from acting on the bearing and prolongs the life of the bearing. In addition, since the surface of the bearing housing is painted, it can maintain a beautiful appearance for a long time.

The High quality FYH structure pillow block bearing produced by our company is made of high-quality raw materials, and the product quality is guaranteed. You can choose our products with confidence, and we will provide you with the best after-sales service.

Interchange

GJP: UCP209-26

AMI: UCP209-26

IPTCI: UCP209-26

NSK: UCP209-26

NTN: UCP209-110D1

Peer: FHSP209-26G

Fafnir: RASC-1 5/8″

Fafnir: YAS-1 5/8″

RHP: NP-1 5/8″

SKF: SY 1 5/8″ TF

Sealmaster: NP-26

1 5/8” FYH Structure Pillow Block Bearing UCP209-26

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

1 5/8″

54MM

190MM

146MM

54MM

21MM

17MM

106MM

1/2



Technical Data for GJP UCP209-26

Housing No.: P209

Bearing Insert No.: UC209-26

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 1.40KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton



1 5/8” FYH Structure Pillow Block Bearing UCP209-26

1 5/8” FYH Structure Pillow Block Bearing UCP209-26

1 5/8” FYH Structure Pillow Block Bearing UCP209-26

1 5/8” FYH Structure Pillow Block Bearing UCP209-26
