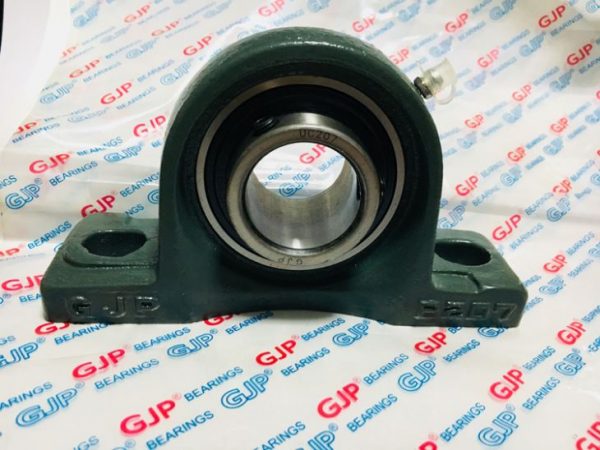

1 5/16” Special Pillow Block Bearing UCP207-21

1 5/16'' Special Pillow Block Bearing UCP207-21

GJP 1 5/16″ Special Pillow Block Bearing UCP207-21 with solid base type housing. Which has grease fitting on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-1 5/16”Inch Bore Special Pillow Block Bearing UCP207-21

GJP Bar Code Number: 6935329802179

GJP 1 5/16″ Special Pillow Block Bearing UCP207-21 with solid base type housing. Which has grease fitting on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

Maintenance of special pillow block bearing

  1. When special pillow block bearing runs for a certain period (or maintenance period), remove all bearings for inspection;
  2. During inspection, first record the appearance by taking pictures and other methods, in addition, confirm the amount of remaining lubricant and sample the lubricant, and then clean the special pillow block bearing;
  3. In order to distinguish whether the removed bearing can be used again, it is necessary to focus on checking its standard accuracy, rotation accuracy, internal clearance, and cooperation surface, raceway surface, cage and sealing ring;
  4. Confirm whether there is any damage in the visual inspection. Bearings with serious damage should be eliminated and replaced with the same model.

Special pillow block bearing with solid base type housing strengthens the support for the bearing; Compared with the traditional bearing housing, the tensile strength is increased by at least 40%; Special pillow block bearing with solid base type housing strengthens the support for the bearing; Reduce the impact of corrosion.

We are a professional special pillow block bearing company, we have many years of production experience and are one of the experts in this industry, you are welcome to visit our factory.



Interchange

GJP: UCP207-21

AMI: UCP207-21

IPTCI: UCP207-21

NSK: UCP207-21

Peer: FHSP207-21G

Fafnir: RASC-1 5/16″

Fafnir: YAS-1 5/16″

RHP: NP-1 5/16″

SKF: SY 1 5/16″ TF

Sealmaster: NP-21

1 5/16” Special Pillow Block Bearing UCP207-21

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

1 5/16″

47.6MM

167MM

127MM

48MM

21MM

17MM

93MM

1/2″



Technical Data for GJP UCP207-21

Housing No.: P207

Bearing Insert No.: UC207-21

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 1.00KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton



1 5/16” Special Pillow Block Bearing UCP207-21

1 5/16” Special Pillow Block Bearing UCP207-21

1 5/16” Special Pillow Block Bearing UCP207-21

1 5/16” Special Pillow Block Bearing UCP207-21



FAQ

Is there any quality control regulation in GJP company? How did you control the quality?

GJP control our own production products strictly under ISO9001: 2015, and this quality audiation were updated every three years strictly, at this files’s guide, GJP control the quality from the material selection, material inspection, molding tools update and selection, casting machinery’s inspection, turning machine’s production control and turning proecss’s guidelines, heat treatment’s anneal and tempering control inspection, grinding CNC machinery’s guideline inspection and label, and the production guideline for how our bearings were put during the production(including which case we would put the quality ones, which case we would put the NG one), for the the NG one, how we would take care of these NG, we throw away or we reprocess, and how would do the inspection for semi-finished products, and how much frequency? And how we inspection for the finished products? All of the production lines, including whether we would take care of our staffs’ retire life and working hours or whether we buy the risk for our workers.
