1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment

1 3/4'' Bearing Unit UCP209-28 for Cold Stamping Equipment

GJP 1 3/4″ Bearing Unit UCP209-28 For Cold Stamping Equipment, Which has grease fitting and Cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.

Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-1 3/4” Bore Pillow Block Bearing Unit UCP209-28

GJP Bar Code Number: 6935329800656

GJP 1 3/4″ UCP209-28 bearing for cold stamping equipment, which has grease fitting and cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.



Advantages of bearing for cold stamping equipment:

  1. Low friction resistance, low power consumption, high mechanical efficiency, and easy to start.
  2. The size is standardized, with interchangeability, easy to install and disassemble, and easy to maintain.
  3. The structure is compact, the weight is light, and the axial ruler is more reduced.
  4. High precision, high speed, small wear and long service life.
  5. Some bearings have self-aligning performance.
  6. It is suitable for mass production, with stable and reliable quality and high shovel efficiency.

The most representative bearing for cold stamping equipment, widely used, can bear radial load and bidirectional axial load; It is suitable for high-speed rotation and occasions requiring low noise and low vibration; the sealed bearing with steel dust cover or rubber sealing ring is pre-filled with an appropriate amount of grease; the bearing with a snap ring or flange on the outer ring is easy to axial positioning, and easy to install in the housing; The maximum load type bearing has the same size as the standard bearing, but has a filling groove in the inner and outer rings, which increases the number of balls loaded and the rated load.

The structure of bearing for cold stamping equipment consists of the following parts

  1. Outer ring – installed in the bearing seat hole, generally does not rotate.
  2. Inner ring – mounted on the journal and rotates with the shaft.
  3. Stamping body – the core component of stamping bearings.
  4. Cage – evenly space the stamping body to avoid friction.

Our company is a professional China bearing for cold stamping equipment factory, if you need our products, please contact us.



Interchange

GJP: UCP209-28

AMI: UCP209-28

IPTCI: UCP209-28

NSK: UCP209-28

NTN: UCP209-112D1

Peer: FHSP209-28G

Fafnir: RASC-1 3/4″

Fafnir: YAS-1 3/4″

RHP: NP-1 3/4″

SKF: SY 1 3/4″ TF

Sealmaster: NP-28



1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

1 3/4″

54MM

190MM

146MM

54MM

21MM

17MM

106MM

1/2



Technical Data for GJP UCP209-28

Housing No.: P209

Bearing Insert No.: UC209-28

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’selection.

Set Screw Material: 35CrMo

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 1.40KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

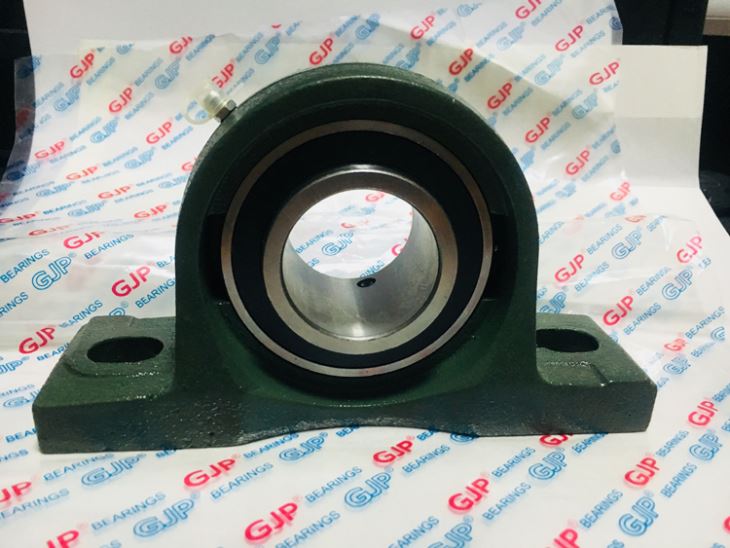

1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment

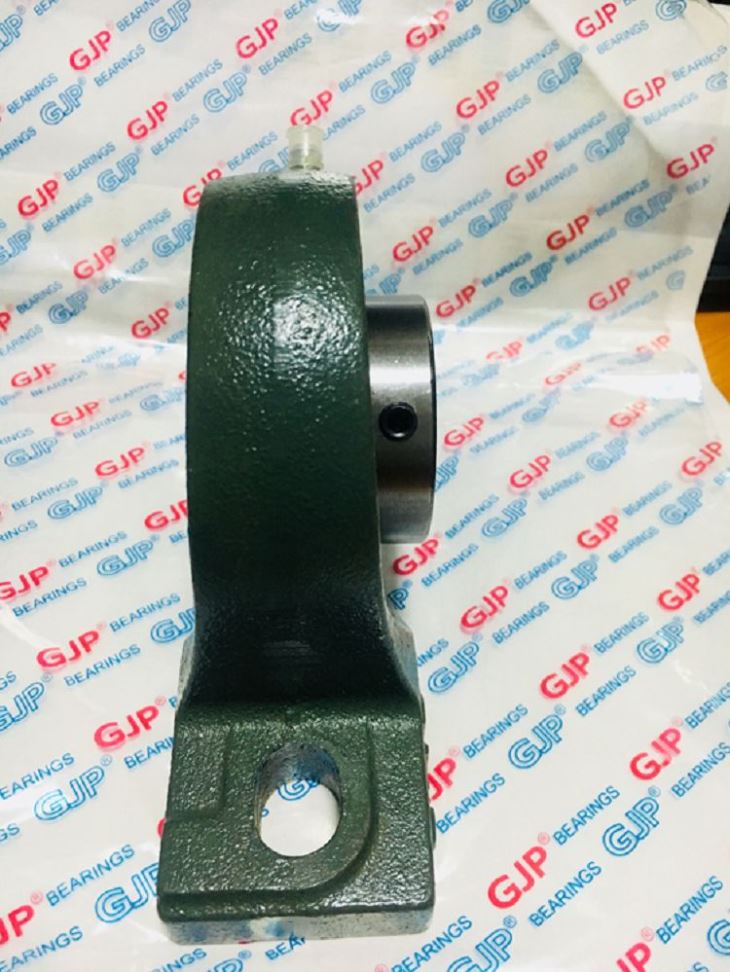

1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment

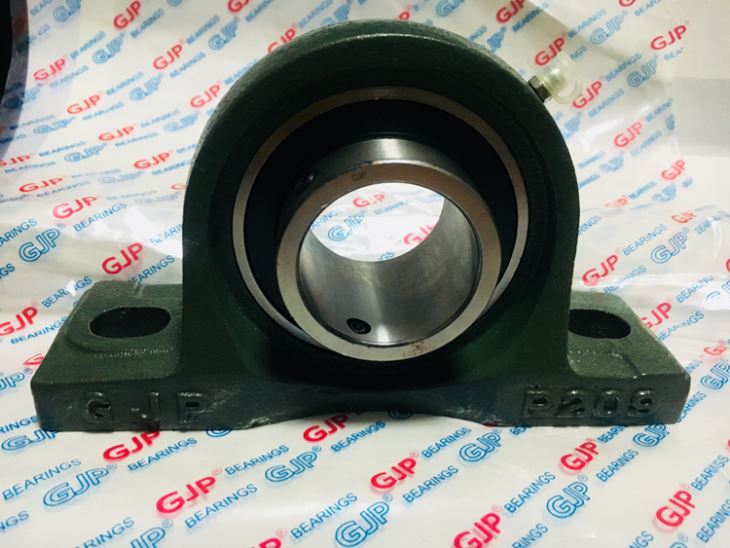

1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment

1 3/4” Bearing Unit UCP209-28 for Cold Stamping Equipment



FAQ

Recently, our country’s currency is devaluing too much compared to US dollar currency, nearly 30% lower, could you please lower down the prices some for us?

Yes, it’s the worldwide situation for many countries, but the point is that our currency did not devalue, if we lower down the prices, it means that we need to share out our profits to you, but the fact is that for bearings products, the prices is very competitive, we could only add small bargin profits, we could help you for one time or two times without making profits, but I suggest that in your future order, if you confirm the order with us or any other of your vendors, you could firstly buy the US dollars in the their cheap prices and save it in your account, so that you could fix the exchange rate and don’t get loss.
