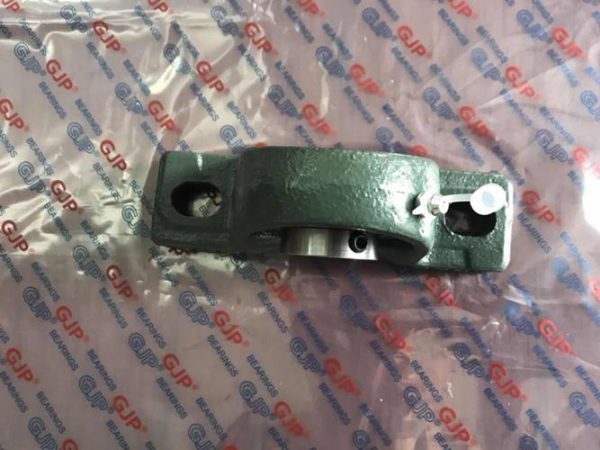

1 1/8” Pillow Block Bearing HCP206-18 for Conveyors

1 1/8'' Pillow Block Bearing HCP206-18 for Conveyors

GJP 1 1/8″ Pillow Block Bearing HCP206-18, which is assembly with high grade quality of HT200 material cast iron housing and Abec-1 grade quality of chrome steel bearing inserts, the bearing housing has an anti-roation device which is self-aligning, and you could choose either prelube type or relube type.

SKU e60efa96ceda Category Tag
Share on facebook
Share on twitter
Share on linkedin

Product Details

Description-11/8 Inch Bore Conveyor Pillow Block Bearing HCP206-18

GJP Bar Code Number: 6935329802636

GJP 1 1/8″ Conveyor Pillow Block Bearing HCP206-18, which is assembly with high grade quality of HT200 material cast iron housing and Abec-1 grade quality of chrome steel bearing inserts, the bearing housing has an anti-roation device which is self-aligning, and you could choose either prelube type or relube type, if there is relube type housing, then for bearing insert, GJP design a grease groove and two grease holes on the outer diameter, and on the extended inner race, there is one black color eccentric locking collars, which has two set screws equally spaced on 120 degree place. HCP206-18 are commonly used on conveyors and other industry machinery. As a professional conveyor pillow block bearing manufacturer, we have advanced technology and excellent product quality, you are welcome to come and consult us.



Conveyor pillow block bearing refers to the mechanical parts used to fix and increase the stability factor in machinery. Conveyor pillow block bearing is a kind of rotatable bearing seat. It mainly consists of four parts. It is its two circles and the rack of the rolling body.

Conveyor pillow block bearings are bearings that are used in conveyor belts. They work by keeping the belt in place and keeping it moving. They are made of a durable material that can withstand the wear and tear that comes with using a conveyor belt.

Advantages in using conveyor pillow block bearing

  1. The friction coefficient of the conveyor pillow block bearing is very small, the energy consumption is also low, and the mechanical efficiency can be very high.
  2. The dimensions are very strict standards, formal. And the use and installation of conveyor pillow block bearing are very convenient and not troublesome.
  3. The axial structure of the conveyor pillow block bearing is compact, which is very beneficial to the reduction of the axial size of the bearing machine, which greatly reduces the size.
  4. It has the characteristics of high precision, low wear intensity, long service life, etc., and maintains the accurate installation of the shaft for a long time.
  5. The conveyor pillow block bearing has a bearing seat with a heart-shaped point of automatic rotation. When the main shaft is slightly bent or other parts are not fitted or there is a problem, the bearing seat can still maintain normal operation.
  6. The conveyor pillow block bearing is suitable for mass production, because the cost is relatively low, the material is better, and the efficiency is relatively high and stable.

How do you maintain conveyor pillow block bearings?

Maintaining conveyor pillow block bearings can be a difficult task. However, by following a few simple steps, it can be a relatively easy process. The first step is to make sure that the bearings are properly lubricated. This can be done by applying a light coat of oil to the bearings. The next step is to make sure that the conveyor belt is properly aligned. This can be done by using a straight edge and checking to make sure that the belt is running straight. If it is not, then the belt can be adjusted using the appropriate tools. Finally, the bearings should be periodically inspected to make sure that they are in good condition. If any damage is found, the bearings should be replaced immediately.



Interchange

GJP: HCP206-18

AMI: UGP206-18

FYH: NAP206-18

IPTCI: NAP206-18

NSK: HCP206-18

Peer: HCP206-18

NTN: UELP206-102D1

Browning: VPE-218

Dodge: P2B-SXR-102

Fafnir: RAS 1 1/8

Link Belt: P3-Y218N

Seal Master: RP-018E

Turner: HCP206-18

SKF: SY 1 1/8 WF



1 1/8” Pillow Block Bearing HCP206-18 for Conveyors

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

1 1/8″

42.9MM

165MM

121MM

48MM

21MM

17MM

83MM

1/2″



Technical Data for GJP HCP206-18

Type: Pillow Block Mounted Unit With Eccentric Locking Collar

Housing No.: P206

Bearing Insert No.: HC206-18

Material For Bearing Insert: 100% Chrome Steel Gcr15(AISI 52100)

Grade For Steel Ball: G10 Grade Chrome Steel Ball.

Materia of Bearing Cage: #10 Steel

Stopping Pin Material on OD of OR: Chrome Steel Gcr15

Sealing Type: F Seal, L3 Seal And Normal NBR Seal are available for customers’ selection.

Eccentric Locking Collar Material: #45 Carbon Steel

Grease: 20% to 50% Mobil Grease

Set Screw Surrounding Hardness: HRC49 to HRC 50

Bearing Race and Steel Ball Hardness: HRC59 to HRC62

Bearing Housing Material: HT200 Grey Cast Iron

Housing Color: Green, Blue, Grey, Black Color available.

Whole Unit Assembly Type: J7 Tight Fitting

Housing Weight: 1.7KGS

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton

Basic Loading(Cr): 19.5KN

Basic Loading(Cor): 11.3KN

1 1/8” Pillow Block Bearing HCP206-18 for Conveyors

1 1/8” Pillow Block Bearing HCP206-18 for Conveyors

1 1/8” Pillow Block Bearing HCP206-18 for Conveyors

1 1/8” Pillow Block Bearing HCP206-18 for Conveyors
