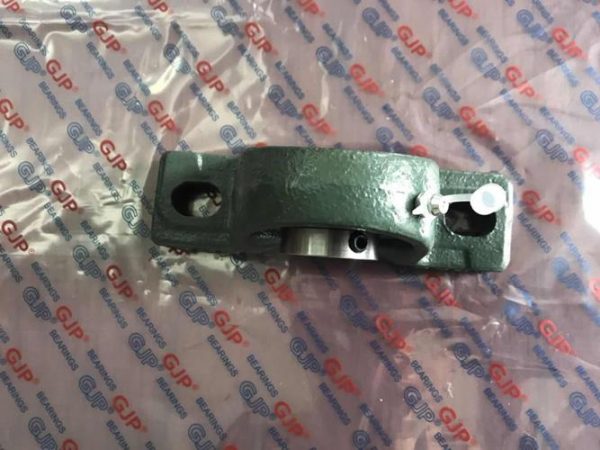

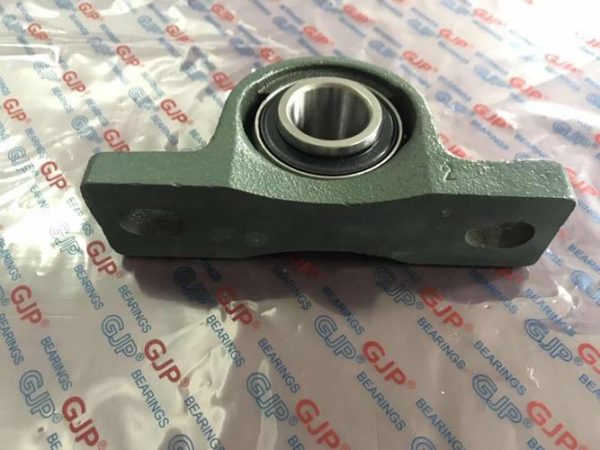

15/16” Green Color Pillow Block Bearing UCP205-15

15/16” Green Color Pillow Block Bearing UCP205-15

The UCP205-15 is a high quality pillow block bearing with a vibrant green color. This durable and reliable bearing has a diameter of 15/16 inch, making it suitable for a variety of applications. Its unique design allows for easy installation and maintenance, ensuring that your equipment runs smoothly and efficiently.

Whether you’re working in construction, manufacturing, or any other industry that requires heavy-duty equipment, the UCP205-15 is the perfect choice. Its sturdy construction and long-lasting durability make it ideal for withstanding harsh environments and extreme conditions.

In addition to its exceptional performance, this pillow block bearing also adds a pop of color to your equipment. The bright green hue is both eye-catching and attractive, adding a touch of personality to your machinery.

Product Details

Description-15/16”Bore UCP205-15 Green Color Pillow Block Bearing

GJP Bar Code Number: 6935329802100

GJP 15/16″ green color pillow block bearing UCP205-15 with solid base housing. Which has grease zerk on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting.



Green color pillow block bearing consists of radial insert ball bearings with seals on both sides and cast (or stamped sheet steel) housings.

The internal layout of green color pillow block bearing is similar to that of deep groove ball bearings, but the inner ring of this bearing is wider than the outer ring. The outer ring has a truncated spherical surface, which is quite self-aligning with the concave spherical surface of the bearing seat.

Usually, there is a gap between the inner hole and the shaft of this kind of bearing, and the inner ring of the bearing is fixed on the shaft with a top wire, an eccentric sleeve or an adapter sleeve, and rolls with the shaft.



Interchange

GJP: UCP205-15

AMI: UCP205-15

IPTCI: UCP205-15

NSK: UCP205-15

NTN: UCP205-015D1

Peer: FHSP205-15G

Fafnir: RASC-15/16”

Fafnir: YAS-15/16”

RHP: NP-15/16”

SKF: SY 15/16”TF

Sealmaster: NP-15



15/16” Green Color Pillow Block Bearing UCP205-15

Basic Dimensions

Bore Size

Center Shaft to Base Size

Housing Length

Center Bolt to Bolt Size

Housing Width

Housing Bolt Length

Housing Bolt Width

Housing Height

Bolt Size

15/16″

36.5MM

140MM

105MM

38MM

19MM

13MM

71MM

3/8″



Technical Data for GJP UCP205-15

Technical specifications for UCP205-15 are crucial for anyone interested in purchasing or working with this bearing unit.

The UCP205-15 unit is a pillow block bearing, which means it is mounted onto a flat surface and supports a rotating shaft. It has a bore size of 15/16 inches and a total length of 140mm.

The bearing housing is made of cast iron, which provides a sturdy and durable housing for the bearing. The housing is also designed with two bolt holes for easy mounting.

The UCP205-15 bearing unit features an outer ring with a spherical bore, which helps to compensate for any misalignment of the shaft. This, in turn, reduces stress on the bearing and extends its lifespan.

The bearing itself is made of high-quality chrome steel, which ensures a long service life and optimal performance. It is also designed with a set screw locking mechanism, which secures the shaft in place and prevents it from slipping.

Quality Control: Under ISO: 9001: 2008 Certificate

Package: 1*1 Single GJP poly bag+1*1 Single GJP color box+1*1 GJP outer carton



Green Color Pillow Block Bearing

15/16” Pillow Block Bearing

UCP205-15

Pillow Block Bearing UCP205-15

GJP Bearing Housing Production Process:

  1. Molding Firstly
  2. Sand Casting, need to wait around 3hours for cooling.
  3. Sand Throwing, need to roughly get rid of the sand.
  4. Polishing the spur.
  5. Machining the bottom, inner diameter, outer diameter, bolt hole, grease groove.
  6. Drilling the grease fitting.
  7. Painting, GJP use electrostatic paint spraying.
  8. Assembled with the bearing insert.
  9. Packaging the poly bag, color box, outer carton and pallet.

FAQ

Is it prices competitive for the bearings which you don’t produce by yourself?

GJP has been in bearing business for more than 15 years, and we establish a good reputation in bearings market, here in China, we have this supply chains that we buy the bearings we don’t produce from another bearing manufacturers, they gave us good prices at guaranteed quality level, then if this bearings manufacturers need to buy the pillow block bearings, we also supply them with competitive prics at good quality, then we benefits from each other, based on this advantage, compared with the end users directly purchase from the manufactuers, we might could suppy to our dealers with better prices and better quality control, as the end users might buy only 100 or 1000pcs, at one time or two times, instead, we buy regularly and much bigger quantity.
