A cast iron pillow block bearing is a type of bearing that is commonly used in industrial and agricultural applications. The bearing is housed within a cast iron casing that provides both stability and protection for the rotating component within. Pillow block bearings are designed to support a shaft and keep it properly aligned, allowing it to rotate freely. They are commonly used in conveyor systems, pumps, fans, and other rotating machinery. Cast iron pillow block bearings are durable and resistant to corrosion and wear, making them well suited for harsh operating environments.
GJP Bar Code Number: 6935329802254

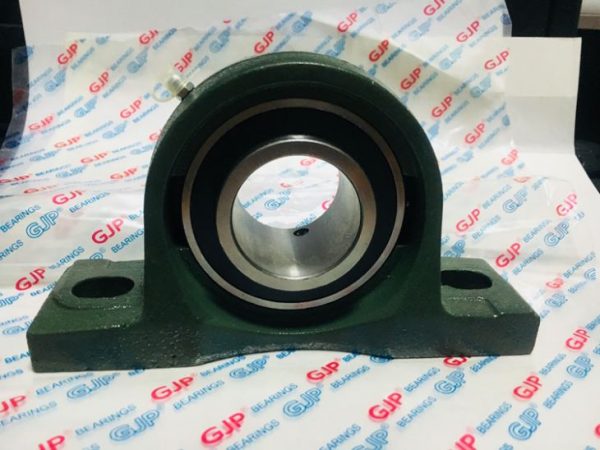

GJP 1 15/16″ Cast Iron Pillow Block bearing UCP210-31 Peer Type, which has grease fitting and cap on 45 degree angle, and the insert bearing has a wide inner ring with two set screws for locking on the shaft, bearing insert and housing are normally assemblied with J7 tight fitting, this items are widely used.
These cast iron pillow blocks are dimensionally interchangeable with ball bearing pillow blocks. Used where ball bearings have failed due to environment or temperature. These housings can also be provided in stainless steel and plastic composites.
GJP: UCP210-31
AMI: UCP210-31
IPTCI: UCP210-31
NSK: UCP210-31
NTN: UCP210-115D1
Peer: FHSP210-31G
Fafnir: RASC-1 15/16”
Fafnir: YAS-1 15/16”
RHP: NP-1 15/16”
SKF: SY 1 15/16”TF
Sealmaster: NP-31
Basic Dimensions |
||||||||
Bore Size |
Center Shaft to Base Size |
Housing Length |
Center Bolt to Bolt Size |
Housing Width |
Housing Bolt Length |
Housing Bolt Width |
Housing Height |
Bolt Size |
1 15/16″ |
57.2MM |
206MM |
159MM |
60MM |
25MM |
20MM |
114MM |
5/8″ |
Housing No.: P210
Bearing Insert No.: UC210-31
Bearing Insert Material: 100% Chrome Steel Gcr15 (AISI 52100)
Steel Ball Grade: G10 Grade Chrome Steel Ball
Bearing Cage Material: #10 Steel
Stopping Pin Material on OD of OR: Chrome Steel Gcr15
Sealing Type: F Seal, L3 Seal, and Normal NBR Seal are available for customers’ selection.
Set Screw Material: 35CrMo
Grease: 20% to 50% Mobil Grease
Set Screw Surrounding Hardness: HRC 49 to HRC 50
Bearing Race and Steel Ball Hardness: HRC 59 to HRC 62
Housing Material: HT200 Grey Cast Iron
Housing Color: Green, Blue, Grey, and Black are available.
Whole Unit Assembly Type: J7 Tight Fitting
Housing Weight: 1.83KGS
Quality Control: Under ISO 9001:2008 certification
Packaging: One unit per GJP poly bag, one GJP color box, and one GJP outer carton.
If our purchasing items are non-standard type of bearings, is there any minimum order quantity requirements from your factory?
Yes, if it’s special type of bearings, as we need to open the new mold, if your order quantity is too small, then the prices are quite expensive and because some items might need the special bar or forging material, if small quantity, we could not get the material from outsides, besides, for the cage or steel ball and seals, we need some mimimum order quantity also, so there is MOQ request for the special bearings, at present, we could not tell you what’s the MOQ quantity we need, as it depends on your projects and how’s the bearing look like? But for the standard type, no order is too big or too small for us, we could try the best to help customers.
